Digitalmätare K24 Adblue

Digitalmätare K24 Adblue

Model No.︰K24

Brand Name︰OEM

Country of Origin︰-

Unit Price︰US $ 15.9 / PC

Minimum Order︰100 PC

Inquire Now

Product Description

Digitalmätare K24 Adblue

 1017A-1.jpg K-24 Digital Flow Meter
Material PPS
Connection Size BSPF1
Accuracy ±1%
Repeatability Error ±0.5%
Max Pressure 20Bar
Temperature Rang From -10℃ to +50℃
Working Voltage 2.3-3.3V
Standby Time  2 years
Flow Range 10L-100L/min
Single Count 0.00-999.99
Total Count 0.00-99999.99
Units L/GAL/PTS/QTS
Packing 50UNIT/CTN
Applications Gasoline,Diesel,Kerosene,Water,Adblue

 1017DE.jpg Electronic Turbine Flow Meter
Material Aluminum
Bearings Material Ceramics
Shaft Tungsten Carbide
Rotor PVDF
Connection Size BSPF/NPT1’’
Pressure 300PSI/21Bar
Repeatability ±0.1%
Flow Rate 10L-120L/min
Metric Accuracy ±1.5%
Packing 20UNIT/CTN
Applications Diesel, Kerosene, Gasoline

Electronic Turbine Flow Meter
Material Aluminum
Bearings Material Ceramics
Shaft Tungsten Carbide
Rotor PVDF
Connection Size BSPF/NPT1’ 1.5''
Pressure 300PSI/21Bar
Repeatability ±0.1%
Flow Rate 20L-200L/min
Metric Accuracy ±1%
Packing 10UNIT/CTN
Applications Diesel, Kerosene, Gasoline

 Flow Meter Engine Oil.jpg Oval Gear Engine Oil Flow Meter
Material Aluminum
Connection Size BSPF/NPT 1/2''
Metric Accuracy ±1%
Max. Working Pressure 1.8 Mpa
Power 1 pc 3.6V Lithium Battery
Unit Count 4 digits
Total Count 6 digits  Accumulationx100 9,999,990
Flow Rate 8L-30L/min
Packing 50UNIT/CTN
N.W/G.W 15/16KGS
Carton Size 42 x 23 x 30cm
Applications heavy duty oil, engine oil, lubrication oil

 FM120-250.jpg Mechanical Flow Meter
Material Aluminum
Connection Size BSPF/NPT 1’
Accuracy ±1%
Accumulative Counting 8 digits
Max Pressure 3 Bar
Flow Range 0-120L/min
Units Litre
Packing 8UNIT/CTN
N.W/G.W 14.5/15KGS
Carton Size 47 x 40 x 33cm
Applications Gasoline,Diesel,Kerosene

 1017C.jpg Mechanical Flow Meter
Material Aluminum
Connection Size BSPF/NPT1’ 1.5''
Accuracy ±1%
Accumulative Counting 8 digits
Max Pressure 3 Bar
Flow Range 10-180L/min
Units Litre
Packing 6UNIT/CTN
N.W/G.W 14.5/15KGS
Carton Size 62 x 29 x 38cm
Applications Gasoline,Diesel,Kerosene

 Flow Meter M21.jpg 3-Digit 1' Aluminum Mechanical Diesel Flow Meter
Material Aluminum
Connection Size BSPF/NPT 1''
Accuracy ±1%
Unit Count 3 digits
Accumulative Counting 6 digits
Max Pressure 3 Bar
Flow Range 0-100L/min
Units Litre
Packing 6UNIT/CTN
N.W/G.W 13/14KGS
Carton Size 60 x 28 x 41cm
Applications Gasoline,Diesel,Kerosene

 Flow Meter M20.jpg 3-Digit Plastic Diesel Transfer Flow Meter
Material Plastic
Connection Size BSPF/NPT 1''
Accuracy ±1%
Unit Count 3 digits
Accumulative Counting 6 digits
Max Pressure 3 Bar
Flow Range 0-100L/min
Units Litre
Packing 10UNIT/CTN
N.W/G.W 15/16KGS
Carton Size 64 x 25 x 31cm
Applications Gasoline,Diesel,Kerosene

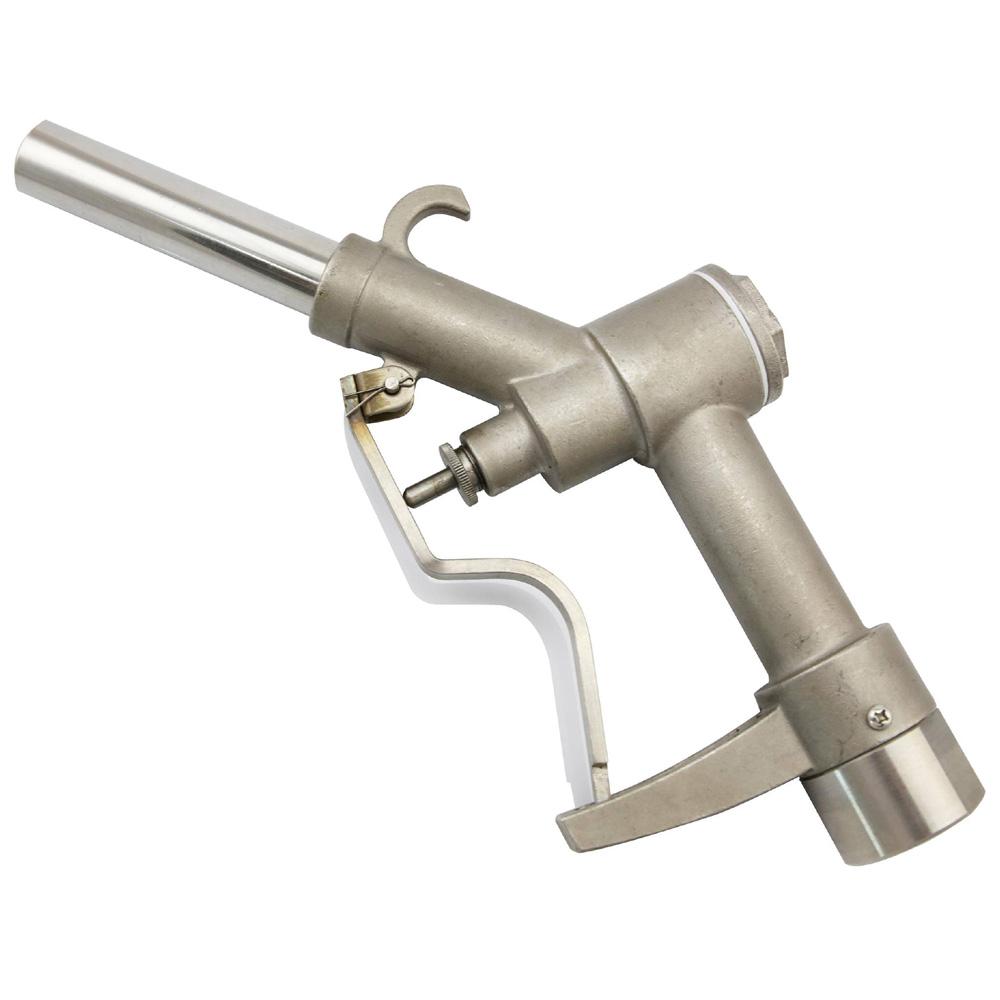

 1018A Fuel Nozzle.jpg SS304 Manual Diesel Fuel Nozzle
Material Stainless steel 304
Outlet O.D. 22mm
Inlet 3/4" NPT female adaptor
Flow Rate 0-80litre/minute
Applications:water,alcohol,gasoline,deisel,kerosene,lubricant,water based
chemical acid and alkali solutions
Packing 20PCS/CTN
G/N Weight  24/23KGS
Carton Size 47X29X17cm

 1018B Fuel Nozzle.jpg 13B Aluminum Manual Fuel Nozzle
Material Aluminum
Color Grey
Connection BSP/NPT Thread
Inlet Dia  BSPT/NPT 1"
Outlet Dia 3/4'
Flow Rate 0-60L/Min
Accuracy ±0.3%
Packing 1UNIT/BOX,10UNITS/CTN
N.W/G.W 10/11KGS
Carton Size 42 x 34 x 40cm
Applications Gasoline,Diesel,Kerosene

 Fuel Nozzle - 12A.jpg 12A Aluminum Manual Fuel Nozzle
Material Aluminum
Color Grey
Connection BSP/NPT Thread
Inlet Dia  BSPT/NPT 1"
Outlet Dia 3/4'
Flow Rate 0-60L/Min
Accuracy ±0.3%
Packing 1UNIT/BOX,10UNITS/CTN
N.W/G.W 10/11KGS
Carton Size 42 x 34 x 40cm
Applications Gasoline,Diesel,Kerosene

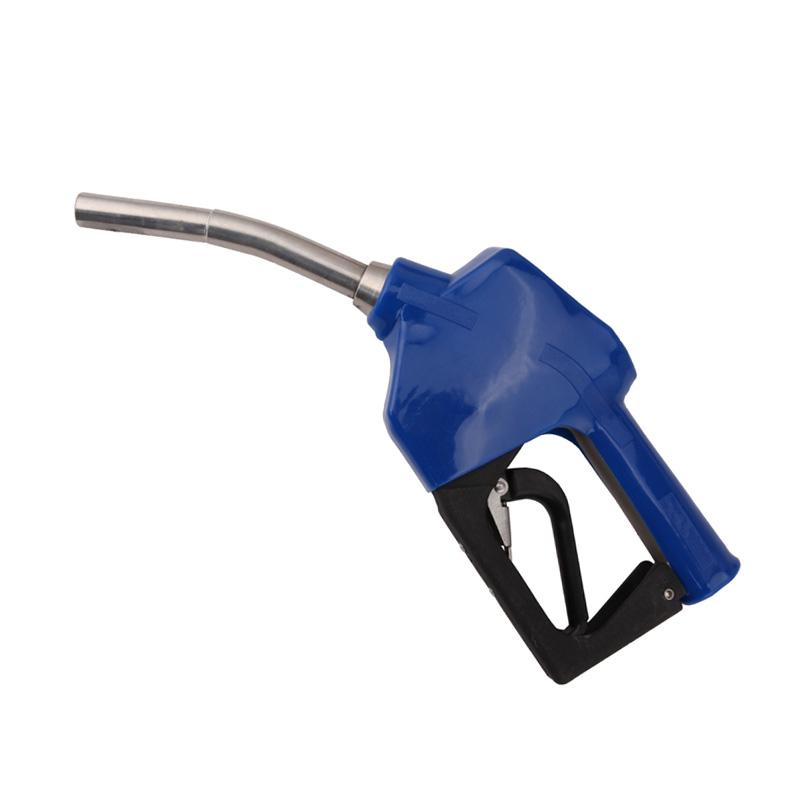

 1018C Fuel Nozzle-A.jpg Aluminum Automatic Diesel Fuel Nozzle 11A
Material Aluminum
Connection BSP/NPT Thread
Inlet Dia  BSPT/NPT 3/4'
Outlet Dia 13/16' & 15/16'
Flow Rate 0-60L/Min or 0-45L/Min
Color Red/Blue/Black
Nominal Pressure 0.18MPa
Self sealing time 0.1S (Max)
Net Weight 1.13KGS
Packing 1UNIT/BOX,10UNITS/CTN
N.W/G.W 13/14KGS
Carton Size 42 x 34 x 40cm
Applications Gasoline,Diesel,Kerosene

 1018I Fuel Nozzle.jpg 120 Automatic Shut-off Fuel Nozzle
Material Aluminum
Connection BSP/NPT Thread
Inlet Dia  BSPT/NPT 1'
Outlet Dia 30mm
Flow Rate 0-120L/Min
Color Red/Blue/Black
Nominal Pressure 0.18MPa
Self sealing time 0.3S
Net Weight 1.3KGS
Packing 1UNIT/BOX,10UNITS/CTN
N.W/G.W 16.5/17.5KGS
Carton Size 42 x 34 x 40cm
Applications Gasoline,Diesel,Kerosene

 Fuel Nozzle-ZVA120.jpg ZVA-120 Automatic Shut-off Fuel Nozzle
Material Aluminum
Connection BSP/NPT Thread
Inlet Dia  BSPT/NPT 1'
Outlet Dia 19/16’
Flow Rate 0-120L/Min
Color Red/Blue/Black
Self sealing time 0.3S
Packing 1UNIT/BOX,10UNITS/CTN
N.W/G.W 17.5/18.5KGS
Carton Size 42 x 36 x 33cm
Applications Gasoline,Diesel,Kerosene

 Fuel Nozzle-ZVA80.jpg ZVA-80 Automatic Shut-off Fuel Nozzle
Material Aluminum
Connection BSP/NPT Thread
Inlet Dia  BSPT/NPT 3/4'
Outlet Dia 1/2’ or 3/4’
Flow Rate 0-40L/min or 0-60L/min
Color Red/Blue/Black
Self sealing time 0.3S
Packing 1UNIT/BOX,10UNITS/CTN
N.W/G.W 11.5/12.5KGS
Carton Size 42 x 36 x 33cm
Applications Gasoline,Diesel,Kerosene

 Fuel Nozzle-BADA.jpg BADA Aluminum Automatic Diesel Fuel Nozzle
Material Aluminum
Connection BSP/NPT Thread
Inlet Dia  BSPT/NPT 3/4'
Outlet Dia 3/4'
Flow Rate 0-60L/Min
Color Red/Blue/Black
Self sealing time 0.3S
Packing 1UNIT/BOX,10UNITS/CTN
N.W/G.W 12.5/13.5KGS
Carton Size 42 x 36 x 33cm
Applications Gasoline,Diesel,Kerosene

 Fuel Nozzle-1290.jpg 1290 Aluminum Automatic Diesel Fuel Nozzle
Material Aluminum
Connection BSP/NPT Thread
Inlet Dia  BSPT/NPT 1.5'
Outlet Dia 1.5'
Flow Rate 0-200L/Min
Color Grey
Self sealing time 0.3S
Packing 1UNIT/BOX,10UNITS/CTN
N.W/G.W 24/25KGS
Carton Size 35 x 35 x 52cm
Applications Diesel,Kerosene

 Fuel Nozzle-1295.jpg 1295 Aluminum Manual Fuel Nozzle
Material Aluminum
Connection BSP/NPT Thread
Inlet Dia  BSPT/NPT 1.5'  or 2'
Outlet Dia 3/4'
Flow Rate 0-200L/min or 0-290L/min
Color Grey
Accuracy ±0.3%
Packing 1UNIT/BOX,10UNITS/CTN
N.W/G.W 24/25KGS
Carton Size 35 x 35 x 52cm
Applications Gasoline, Diesel,Kerosene

 Fuel Nozzle-N24.jpg Manual Barrel Nozzle
Material Aluminum
Connection BSP/NPT Thread
Inlet Dia  BSPT /NPT   1’ - 4’
Outlet Dia 1’ - 4’
Flow Rate 0-600L/Min
Color Grey
Accuracy ±0.3%
Packing 1UNIT/BOX,10UNITS/CTN
N.W/G.W 24/25KGS
Carton Size 35 x 35 x 52cm
Applications Gasoline, Diesel,Kerosene

 Fuel Nozzle-N25.jpg Manual Barrel Nozzle
Material Aluminum / Brass Steel
Connection BSP/NPT Thread
Inlet Dia  BSPT /NPT  ¾’ 1’   M22x1.5
Outlet Dia ¾’
Flow Rate 0-60L/Min
Color Black
Accuracy ±0.3%
Packing 1UNIT/BOX,10UNITS/CTN
N.W/G.W 24/25KGS
Carton Size 36 x 32 x 32cm
Applications LPG

 1018A-1 Fuel Nozzle.jpg PP (polypropylene) Manual AdBlue/DEF Nozzle
Color White
Body Material Polypropylene (PP)
Spout Material Stainless steel
Nozzle Size 19mm
Flow Rate 0-80litre/minute
Applications:AdBlue/DEF solutions,water,alcohol,gasoline,diesel,kerosene,
lubricant, water based chemical acid and alkali solutions
Packing 50PCS/CTN
G/N Weight  16/15KGS
Carton Size 67 x 47 x 35cm

 1018D Fuel Nozzle.jpg SS304 Manual Adblue Nozzle
Material Stainless steel 304
Outlet O.D. 19mm
Inlet 3/4" NPT female adaptor
Flow Rate 0-120L/Min
Features Auto. locking Trigger for hands-free Operation
Applications:Adblue,Urea,water,alcohol,gasoline,deisel,kerosene,lubricant,
water based chemical acid and alkali solutions
Packing 10PCS/CTN
G/N Weight  23/24KGS
Carton Size 42x34x40cm

 1018E Fuel Nozzle.jpg Metering Manual Fuel Nozzle - K27
Connection BSP/NPT Thread
Inlet Dia  BSPT/NPT1’’
Outlet Dia 24mm
Flow Rate 0-60L/Min
Accuracy ±0.5%
Packing 1UNIT/BOX,10UNITS/CTN
N.W/G.W 18/19KGS
Carton Size 42 x 34 x 40cm
Applications Gasoline,Diesel,Kerosene

 Fuel Nozzle-K26.jpg Turbine Metering Fuel Nozzle - K26
Material Aluminum
Connection BSP/NPT Thread
Inlet Dia  BSPT/NPT1’’
Outlet Dia 24mm
Flow Rate 10-60L/Min
Accuracy ±0.5%
Packing 1UNIT/BOX,10UNITS/CTN
N.W/G.W 18/19KGS
Carton Size 42 x 34 x 40cm
Applications Gasoline,Diesel,Kerosene

 1018G Fuel Nozzle.jpg Metering Automatic Fuel Nozzle - K28
Connection BSP/NPT Thread
Inlet Dia  BSPT/NPT1’’
Outlet Dia 24mm
Flow Rate 0-60L/Min
Accuracy ±0.5%
Packing 1UNIT/BOX,10UNITS/CTN
N.W/G.W 18/19KGS
Carton Size 51 x 32 x 45cm
Applications Gasoline,Diesel,Kerosene

 Fuel Nozzle-K29.jpg Automatic Shut-off and Pricing Fuel Nozzle - K29
Connection BSP/NPT Thread
Inlet Dia  BSPT/NPT 1’’
Outlet Dia 20/24mm
Flow Rate 10-60L/Min
Accuracy ±0.2%
Flow Meter Type Turbine flowmeter
Maximum pressure 3 Bar
Repeatability ≤0.17
Packing 1UNIT/BOX,10UNITS/CTN
N.W/G.W 18/19KGS
Carton Size 42 x 34 x 40cm
Applications Gasoline,Diesel,Kerosene

 1018K Fuel Nozzle.jpg K32 Metering Fuel Nozzle
Material Aluminum
Color Green
Inlet Dia  DN15/DN25/DN32/DN38
Working Pressure 0.3Mpa
Flow Rate 0-60L/M;  20-60L/M; 20-120L/M; 20-150L/M
Accuracy ±1%
Packing 1UNIT/BOX,10UNITS/CTN
KGS/CTN 12.5/14.5/16.5/18kg/carton
Carton Size 51 x 32 x 45cm
Applications Gasoline,Diesel,Kerosene

 Fuel Nozzle-K25.jpg Metering Fuel Nozzle - K25
Connection BSP/NPT Thread
Inlet Dia  BSPT/NPT1’’
Outlet Dia 3/4'
Flow Rate 0-60L/Min
Accuracy ±0.5%
Packing 1UNIT/BOX,10UNITS/CTN
N.W/G.W 18/19KGS
Carton Size 51 x 32 x 45cm
Applications Gasoline,Diesel,Kerosene

 Fuel Nozzle-K33.jpg Metering Oil Nozzle - K33
Connection BSP/NPT Thread
Inlet Dia  BSPT/NPT 1/2’’
Outlet Dia 1/2'
Flow Rate 0-30L/Min
Working Pressure 0.5 Mpa
Accuracy ±0.5%
Packing 1UNIT/BOX,10UNITS/CTN
N.W/G.W 13.5/14.5KGS
Carton Size 51 x 32 x 45cm
Applications heavy duty oil, engine oil, lubrication oil

 Fuel Nozzle-K34.jpg Metering Engine Oil Nozzle - K34
Connection BSP/NPT Thread
Inlet Dia  BSPT/NPT 1/2’’
Outlet Dia 1/2'
Flow Rate 0-30L/Min
Working Pressure 0.5 Mpa
Accuracy ±0.5%
Packing 1UNIT/BOX,10UNITS/CTN
N.W/G.W 13.5/14.5KGS
Carton Size 51 x 32 x 45cm
Applications heavy duty oil, engine oil, lubrication oil

 Fuel Nozzle-Vapor.jpg Vapor Recovery Fuel Nozzle
Material Aluminum
Connection BSP/NPT Thread
Inlet Dia  BSPT/NPT 1/2'
Outlet Dia 1/2'
Flow Rate 0-40L/Min
Color Red/Blue/Black
Self sealing time 0.3S
Packing 1UNIT/BOX,10UNITS/CTN
N.W/G.W 12.5/13.5KGS
Carton Size 42 x 36 x 33cm
Applications Gasoline,Diesel,Kerosene











Specifications︰ Digitalmätare K24 Adblue
