Turbine Electronic AdBlue/Def/Urea Chemical Flow Meter K24 Digital Diesel Water FlowMeter
 |
SS304 Manual Diesel Fuel Nozzle |
| Material |
Stainless steel 304 |
| Outlet O.D. |
22mm |
| Inlet |
3/4" NPT female adaptor |
| Flow Rate |
0-80litre/minute |
| Applications:water,alcohol,gasoline,deisel,kerosene,lubricant,water based chemical acid and alkali solutions |
| Packing |
20PCS/CTN |
| G/N Weight |
23/24KGS |
| Carton Size |
47x29x17cm |
| |
 |
Aluminum Manual Diesel Fuel Nozzle |
| Material |
Aluminum |
| Connection |
BSP/NPT Thread |
| Inlet Dia |
BSPT/NPT 3/4" or 1" |
| Outlet Dia |
15/16' |
| Flow Rate |
0-60L/Min |
| Nominal Pressure |
0.20MPa |
| Net Weight |
0.68KGS |
| Packing |
1UNIT/BOX,10UNITS/CTN |
| N.W/G.W |
11/12KGS |
| Carton Size |
42 x 34 x 40cm |
| Applications |
Gasoline,Diesel,Kerosene |
| |
 |
Aluminum Automatic Diesel Fuel Nozzle |
| Material |
Aluminum |
| Connection |
BSP/NPT Thread |
| Inlet Dia |
BSPT/NPT 3/4' |
| Outlet Dia |
13/16' & 15/16' |
| Flow Rate |
0-60L/Min or 0-45L/Min |
| Color |
Red/Blue/Black |
| Nominal Pressure |
0.18MPa |
| Self sealing time |
0.1S (Max) |
| Net Weight |
1.13KGS |
| Packing |
1UNIT/BOX,10UNITS/CTN |
| N.W/G.W |
13/14KGS |
| Carton Size |
42 x 34 x 40cm |
| Applications |
Gasoline,Diesel,Kerosene |
| |
 |
Metering Fuel Oil Diesel Kerosene Gasoline Nozzle Fuelling Gun |
| Material |
Aluminum Alloy |
| Inlet Dia |
BSP/NPT1’’ |
| Net Weight |
1.4kgs |
| Flow Rate |
15-40L/Min |
| Accuracy |
±1% |
| Max Pressure |
≤0.4 Mpa |
| Display |
LCD Digital |
| Metering Range |
1~9999 |
| Packing |
1UNIT/BOX,10UNITS/CTN |
| N.W/G.W |
14/15KGS |
| Carton Size |
42 x 34 x 40cm |
| Applications |
Diesel,Kerosene,Gasoline |
| |
 |
Automatic Fuel Nozzle 1" 120 Oil Gun |
| Size |
450x150x30mm |
| Connection |
BSP/NPT Thread |
| Inlet Dia |
BSPT/NPT 1' |
| Outlet Dia |
16/19' |
| Flow Rate |
0-120L/Min |
| Color |
Red, Blue |
| Max Pressure |
1 MPa |
| Net Weight |
1.4KGS |
| Packing |
1UNIT/BOX,10UNITS/CTN |
| N.W/G.W |
16/17KGS |
| Carton Size |
51 x 38 x 45cm |
| Applications |
Gasoline,Diesel,Kerosene |
| |
 |
PP (polypropylene) Manual AdBlue/DEF Nozzle |
| Color |
White |
| Body Material |
Polypropylene (PP) |
| Spout Material |
Stainless steel |
| Nozzle Size |
19mm |
| Flow Rate |
0-80litre/minute |
| Applications:AdBlue/DEF solutions,water,alcohol,gasoline,diesel,kerosene, |
| lubricant, water based chemical acid and alkali solutions |
| Packing |
50PCS/CTN |
| G/N Weight |
16/15KGS |
| Carton Size |
67 x 47 x 35cm |
| |
 |
Stainless Steel Automatic Nozzle for Adblue/DEF Urea |
| Size |
45x15x1.9cm |
| Body Material |
Stainless Steel |
| Net Weight |
2.4kgs |
| Inlet |
BSPF/NPT3/4" |
| Outlet |
16mm |
| Flow Rate |
0-120L/Min |
| Applications:AdBlue/DEF solutions,water,alcohol,gasoline,diesel,kerosene, |
| lubricant, water based chemical acid and alkali solutions |
| Packing |
10PCS/CTN |
| G/N Weight |
23/24KGS |
| Carton Size |
42 x 34 x 40cm |
| |
 |
Metering Nozzle |
| Connection |
BSP/NPT Thread |
| Inlet Dia |
BSPT/NPT1’’ |
| Outlet Dia |
|
| Flow Rate |
0-60L/Min |
| Accuracy |
±0.5% |
| Packing |
1UNIT/BOX,10UNITS/CTN |
| N.W/G.W |
18/19KGS |
| Carton Size |
42 x 34 x 40cm |
| Applications |
Gasoline,Diesel,Kerosene |
| |
 |
Metering Nozzle |
| Connection |
BSP/NPT Thread |
| Inlet Dia |
BSPT/NPT1’’ |
| Outlet Dia |
|
| Flow Rate |
0-60L/Min |
| Accuracy |
±0.5% |
| Packing |
1UNIT/BOX,10UNITS/CTN |
| N.W/G.W |
18/19KGS |
| Carton Size |
42 x 34 x 40cm |
| Applications |
Gasoline,Diesel,Kerosene |
| |
 |
Measuring Fuel Nozzle With Oval Digital Gear Meter |
| Material |
Aluminum Alloy |
| Connection |
BSP/NPT Thread |
| Inlet Dia |
BSPT/NPT1’’ |
| Size |
32x15x3cm |
| Flow Rate |
10-100L/Min |
| Accuracy |
±0.5% |
| Display |
LCD Digital |
| Packing |
1UNIT/BOX,10UNITS/CTN |
| N.W/G.W |
14/15KGS |
| Carton Size |
42 x 34 x 40cm |
| Applications |
Diesel,Kerosene |
| |
 |
K24 Digital Flow Meter |
| Certificate |
CE |
| Material |
PPS |
| Connection Size |
BSPF1 |
| Accuracy |
±1% |
| Repeatability Error |
±0.5% |
| Max Pressure |
20Bar |
| Temperature Rang |
From -10℃ to +50℃ |
| Working Voltage |
2.3-3.3V |
| Standby Time |
2 years |
| Flow Range |
10L-100L/min |
| Single Count |
0.00-999.99 |
| Total Count |
0.00-99999.99 |
| Units |
L/GAL/PTS/QTS |
| Packing |
50UNIT/CTN |
| N.W/G.W |
15/16KGS |
| Carton Size |
42 x 23 x 30cm |
| Applications |
Gasoline,Diesel,Kerosene,Water,Adblue |
| |
 |
Electronic Turbine Flow Meter |
| Material |
Aluminum |
| Bearings Material |
Ceramics |
| Shaft |
Tungsten Carbide |
| Rotor |
PVDF |
| Connection Size |
BSPF/NPT1’’ |
| Pressure |
300PSI/21Bar |
| Repeatability |
±0.1% |
| Flow Rate |
10L-120L/min |
| Metric Accuracy |
±1.5% |
| Packing |
20UNIT/CTN |
| N.W/G.W |
7/8.5KGS |
| Carton Size |
49.5 x 38 x 19.5cm |
| Applications |
Diesel, Kerosene, Gasoline |
| |
|
Electronic Turbine Flow Meter |
| Material |
Aluminum |
| Bearings Material |
Ceramics |
| Shaft |
Tungsten Carbide |
| Rotor |
PVDF |
| Connection Size |
BSPF/NPT1’ 1.5'' |
| Pressure |
300PSI/21Bar |
| Repeatability |
±0.1% |
| Flow Rate |
20L-200L/min |
| Metric Accuracy |
±1% |
| Packing |
10UNIT/CTN |
| N.W/G.W |
12/13.65KGS |
| Carton Size |
49.5 x 38 x 19.5cm |
| Applications |
Diesel, Kerosene, Gasoline |
| |
 |
Mechanical Flow Meter |
| Material |
Aluminum |
| Connection Size |
BSPF/NPT 1’ |
| Accuracy |
±1% |
| Accumulative Counting |
8 digits |
| Max Pressure |
3 Bar |
| Flow Range |
0-120L/min |
| Units |
Litre |
| Packing |
8UNIT/CTN |
| N.W/G.W |
14.5/15KGS |
| Carton Size |
47 x 40 x 33cm |
| Applications |
Gasoline,Diesel,Kerosene |
| |
 |
Mechanical Flow Meter |
| Material |
Aluminum |
| Connection Size |
BSPF/NPT1’ 1.5'' |
| Accuracy |
±1% |
| Accumulative Counting |
8 digits |
| Max Pressure |
3 Bar |
| Flow Range |
10-180L/min |
| Units |
Litre |
| Packing |
6UNIT/CTN |
| N.W/G.W |
14.5/15KGS |
| Carton Size |
62 x 29 x 38cm |
| Applications |
Gasoline,Diesel,Kerosene |
| |
 |
Electric Diesel Fuel Oil Transfer Drum Pump - 60L/Min |
| Voltage |
AC 110V 220V |
| Material |
Aluminum Alloy |
| Total Length |
1.2m |
| Load Current |
11.5Amps |
| Power |
430W |
| Inlet Dia |
44mm |
| Outlet Dia |
25mm |
| Output Flowing |
60L/Min |
| Suction |
5m |
| Lift |
10m |
| Cable |
2m |
| Application |
Diesel,Kerosene,Water |
| Packing |
1PC/BOX,10PCS/CTN |
| |
 |
Electric Diesel Fuel Oil Transfer Drum Pump - 60L/Min |
| Voltage |
DC 12V 24V |
| Material |
Aluminum Alloy |
| Total Length |
1.2m |
| Load Current |
11.5Amps |
| Power |
430W |
| Inlet Dia |
44mm |
| Outlet Dia |
25mm |
| Output Flowing |
60L/Min |
| Suction |
5m |
| Lift |
10m |
| Cable |
2m |
| Application |
Diesel,Kerosene,Water |
| Packing |
1PC/BOX,10PCS/CTN |
| |
 |
304 Stainless Steel Electric Chemical Barrel Pump |
| Voltage |
220V |
| Power |
0.88KW |
| Material |
304 Stainless Steel |
| Suction Tube |
304 Stainless Steel |
| Seal Material |
Viton |
| Vane Material |
304 Stainless Steel |
| Spout Material |
304 Stainless Steel |
| Inlet/Out Dia |
50mm/25mm |
| Tube Length |
1000mm |
| Output Flowing |
110L/Min |
| Suction/Lift |
5m/7.5mm |
| Speed |
10000R/Min |
| Fits on |
15 - 55 Gallon Drums |
| Applications |
Acid,alkali,diesel,machine oil,water, toluene,Uric acid |
|
| Packing |
2PCS/CTN |
| |
 |
316 Stainless Steel Electric Chemical Barrel Pump |
| Voltage |
220V |
| Power |
0.8KW |
| Material |
316 Stainless Steel |
| Suction Tube |
316 Stainless Steel |
| Seal Material |
Viton |
| Impeller Material |
304 Stainless Steel |
| Spout Material |
304 Stainless Steel |
| Inlet/Out Dia |
42mm/25mm |
| Tube Length |
1000mm |
| Output Flowing |
150L/Min |
| Suction/Lift |
5m/10mm |
| Motor |
Changable Speed |
| Max Viscosity |
1200CPS |
| Fits on |
15 - 55 Gallon Drums |
| Applications |
Acid,alkali,diesel,gasoline,machine oil,water,alcohol,toluene,Uric acid |
|
| Packing |
2PCS/CTN |
| |
 |
Plastic ( PP ) Air-operated Fluid Transfer Drum Pump |
| Model |
Pneumatic Fluid Transfer Pump |
| Pump Construction |
PP |
| Tube Material |
PP |
| Tube Nos |
1PC |
| Inlet Tube Length |
98CM |
| Overall Length |
130CM |
| Inelt Dia |
43mm |
| Outlet Dia |
22mm |
| Flow Rate |
190ML/Stroke |
| Max Flow GPM |
8(water) |
| Max Pressure |
100PSI |
| Applicable Drums |
Fits 5 to 55 gallon drums |
| Applications |
AdBlue/DEF, water, alcohol, gasoline, diesel, kerosene, lubricant, water based chemical acid and alkali solutions |
| |
|
|
 |
Submersible Diesel Fuel Transfer Pump - 51mm |
| Pump Body Material |
Stainless Steel; Aluminum; Plastic |
| Motor Case,Impeller |
Plastic - PP |
| Filter,Outlet |
Plastic - Nylon |
| Stator Material |
Magnetic Steel |
| Seal Material |
NBR |
| Switch |
6A - 250AC |
| Voltage |
12V/24V |
| Power |
60W |
| Outlet Dia |
19mm |
| Cable |
3m |
| Overall Size |
50.8 x 50.8 x 177mm |
| Flow |
30L/Min |
| Lift |
3m |
| Speed |
8500 R/Min |
| Applications |
Diesel,Kerosene,Water |
| |
| Submersible Diesel Fuel Transfer Pump - 38mm |
| Pump Body Material |
Stainless Steel; Aluminum; Plastic |
| Motor Case,Impeller |
Plastic - PP |
| Filter,Outlet |
Plastic - Nylon |
| Stator Material |
Magnetic Steel |
| Seal Material |
NBR |
| Switch |
6A - 250AC |
| Voltage |
12V/24V |
| Power |
40W |
| Outlet Dia |
19mm |
| Cable |
3m |
| Overall Size |
38 x 38 x 117mm |
| Flow |
20L/Min |
| Lift |
2m |
| Speed |
8500 R/Min |
| Applications |
Diesel,Kerosene,Water |
| |
 |

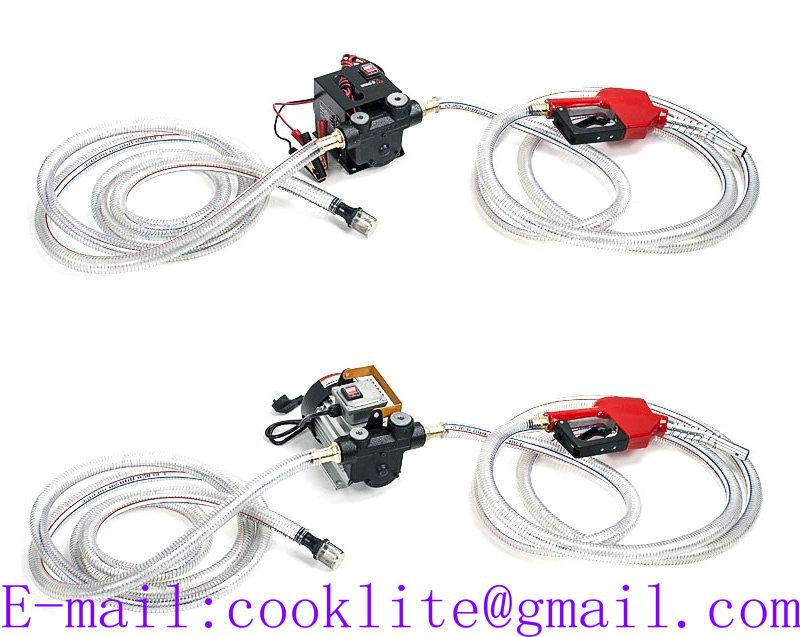

Fuel Oil Diesel Transfer Pump - 45L/Min 175W DC 12V/24V |
| Voltage |
DC 12V/24V |
| Power |
175W |
| Load Current |
10 Amps |
| Inlet/Outlet Dia |
25mm/25mm |
| Power Cable |
2m |
| Flow |
50L/Min |
| Suction/Lift |
5m/10m |
| Net Weight |
3.7KGS |
| Packing |
1SET/BOX,6SET/CTN |
| Applications |
Diesel,Kerosene |
| |
 |
Diesel Fuel Transfer Pump - 70L/Min 550W DC 12V/24V |
| Voltage |
DC 12V/24V |
| Power |
550W |
| Inlet/Outlet Dia |
25mm/25mm |
| Power Cable |
2m |
| Flow Rate |
70L/Min |
| Suction |
5m |
| Lift |
10m |
| Packing |
1SET/BOX,6SET/CTN |
| Applications |
Diesel,Kerosene |
| |
 |
Diesel Fuel Transfer Pump - 60L/Min 550W AC 220-240V |
| Voltage |
AC 220-240V |
| Power |
550W |
| Frequency |
50HZ |
| Load Current |
2.5 Amps |
| Inlet/Outlet Dia |
25mm/25mm |
| Power Cable |
2m |
| Speed |
2800R/Min |
| Flow |
60L/Min |
| Suction/Lift |
5m/10m |
| Packing |
1UNIT/BOX,2UNITS/CTN |
| Applications |
Diesel,Kerosene |
| |
 |
Diesel Fuel Transfer Pump - 80L/Min 750W AC 220-240V |
| Voltage |
AC 220-240V |
| Power |
750W |
| Frequency |
50HZ |
| Inlet/Outlet Dia |
25mm/25mm |
| Power Cable |
2m |
| Flow |
80L/Min |
| Suction |
5m |
| Lift |
10m |
| Packing |
1UNITS/CTN |
| Applications |
Diesel,Kerosene |
| |
 |
12V Diesel Heating Motor Oil Extractor Pump |
| Maximum Current |
5A |
| Maximum Power |
60W |
| Sound Pressure Level |
70dB(A) |
| Power Supply |
12V- vehicle battery |
| Diesel/Heating Oil Flow Rate |
250L/H |
| Motor oil (40-60 degrees) Flow Rate |
1L/Min |
| Oil Extractor Pump Size |
13 x 8 x 8.5cm ( L x W x H ) |
| Input Hose |
1.2m/6mm/4mm (Length/Outer Dia/Inner Dia) |
| Outlet Hose |
1.5m/12mm/10mm (Length/Outer Dia/Inner Dia) |
| Packing |
10PCS/CTN |
| |
 |
12V/24V 100W Engine Oil Transfer Pump |
| Theory |
Gear Pump |
| Voltage |
DC 12V/24V |
| Power |
100W |
| No-Load Current |
2.5A |
| Load Current |
5A |
| Worke Cycle |
30 Min |
| Flow |
1-4L/Min |
| Inlet Tube |
6mm x 800mm Copper Tube |
| |
8mmx1000mm PU Tube |
| Outlet Tube |
10mmx1000mm PU Tube |
| Packing |
12PCS/CTN |
| |
 |
220V Engine Oil Transfer Gear Pump Motor 550W 20L/Min |
| Voltage |
AC 220-240V |
| Power |
550W |
| Inlet/Outlet Dia |
25mm/25mm |
| Cable Length |
1.3M |
| Speed |
1400R/Min |
| Flow |
20L/Min |
| Suction/Lift |
10m/20m |
| Packing |
1UNIT/BOX,2UNITS/CTN |
| Net Weight |
8.5KGS |
| Applications |
#32,46,68 engine oil or Hydraulic oil |
| |
 |
Electric 12V/24V AdBlue Liquid Transfer Membrane Pump |
| Power |
330W |
| Speed |
3000R/Min |
| Flow |
40L/Min |
| Pump Type |
Diaphragm |
| Housing |
Polyproplyene |
| Diaphragm |
TPU |
| Check Valve |
Viton |
| Check Valve Spring |
316 Stainless Steel |
| Motor Shaft |
316 Stainless Steel |
| Inlet/Outlet Dia |
25mm |
| Maximum Working Pressure |
40PSI ( 3 Bar ) |
| Switch Setting |
Yes |
| Self Priming |
Up to 5M vertically |
| Liquid Temperature |
No more than 60°C |
| Applications |
AdBlue;Urea;Water |
| |
 |
Electric AC Adblue Transfer Diaphragm Pump 220V 40L/Min |
| Power |
330W |
| Speed |
2850R/Min |
| Flow |
40L/Min |
| Pump Type |
Diaphragm |
| Housing |
Polyproplyene |
| Diaphragm |
TPU |
| Check Valve |
Viton |
| Check Valve Spring |
316 Stainless Steel |
| Motor Shaft |
316 Stainless Steel |
| Inlet/Outlet Dia |
25mm |
| Maximum Working Pressure |
40PSI ( 3 Bar ) |
| Switch Setting |
Yes |
| Self Priming |
Up to 5M vertically |
| Liquid Temperature |
No more than 60°C |
| Applications |
Adblue;Urea;Water |
|
|
|
|
| Specifications︰ | Turbine Electronic AdBlue/Def/Urea Chemical Flow Meter K24 Digital Diesel Water FlowMeter |
|
|
Product Image
|
|
Lever Operated Barrel Pump Suits Adblue Thinners Solvents Hydraulic Oils
Hand Rotary Operated Barrel Pump Suits Adblue Thinners Solvents Hydraulic Oils
|
|
|
|
