304 Stainless Steel Rotary Chemical Drum Pump with Teflon Seals
Material: 304 Stainless Steel
Vane/Piston/Seals: Telfon
Suction Tube Length:100cm
Inlet Dia: 32mm
Outlet Dia: 27mm
Flow Rating: 240ML/R
Length: 1260mm
Flow Rate: 22L/Min
Applicable Drums: 15 - 55 Gallon
Applications: Drinking water, milk, alcohol, gasoline, diesel, kerosene, lubricant, water based chemical acid and alkali solutions, strong acid, strong alkali solutions, nitric acid, etc
 |
304 Stainless Steel Rotary Chemical Drum Pump with Teflon Seals |
| Art No |
304 Stainless Steel Rotary Drum Pump |
| Body Material |
304 Stainless Steel |
| Gasket/Seal/Vane |
Teflon |
| Tube Qty |
1PC |
| Tube Length |
100CM |
| Inlet Tube Dia |
32mm |
| Outlet Tube Dia |
27mm |
| Adapter Size |
2" Bung adaptor |
| Suction / Head |
1.5m / 5m |
| Flowing |
240ML/Revolution |
| Speed |
70R/Min |
| Length |
1260mm |
| Pressure |
360Psi |
| Applicable Drums |
15 - 55 Gallon |
| Applications |
Drinking water, milk, alcohol, gasoline, diesel, kerosene, lubricant, water based chemical acid and alkali solutions, strong acid, strong alkali solutions, nitric acid, etc |
| Packing |
1PC/BOX,2PCS/CTN |
| Gross/Net Weight |
16/12KGS |
| Packing Size |
105 x 23 x 15cm |
| |
 |

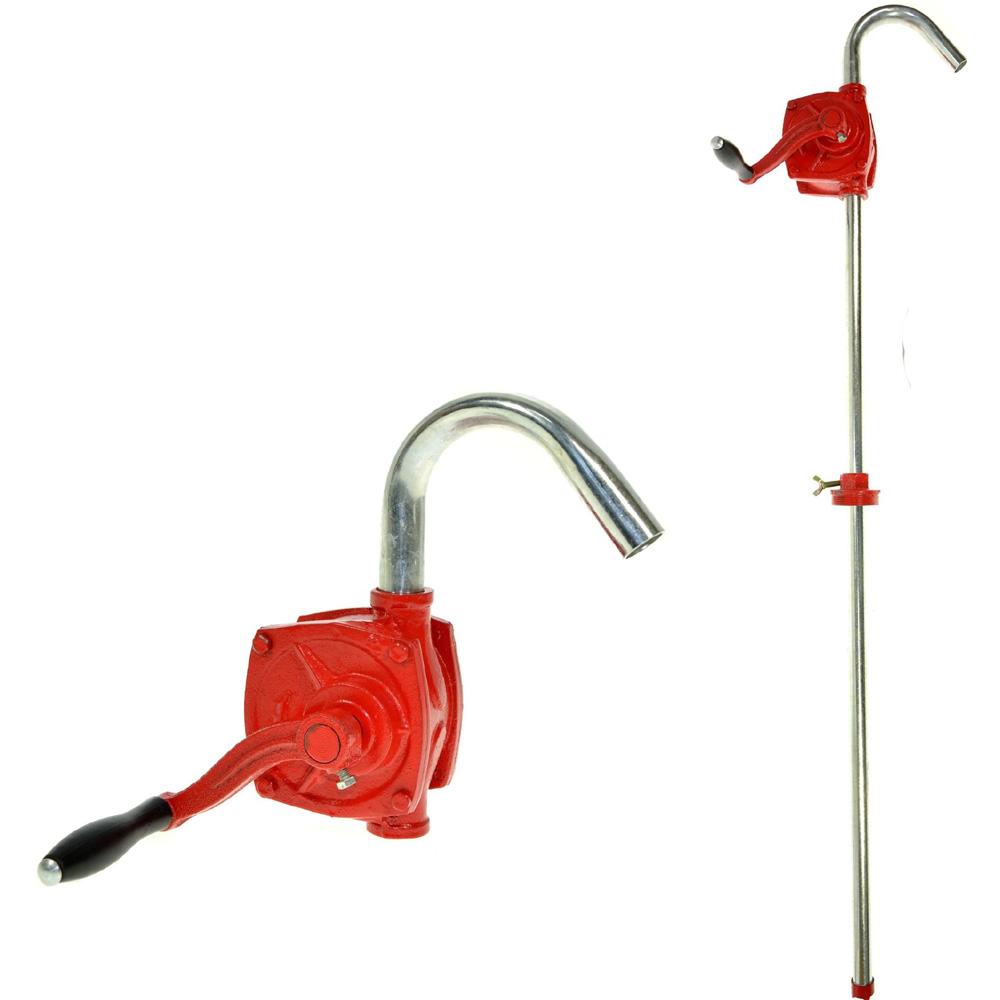

Cast Iron Hand Rotary Drum Pump - 25mm 22L/Min |
| Art No |
WS-25 Cast Iron Rotary Drum Pump |
| Body Material |
Cast Iron |
| Vane |
Cast iron / Copper / Teflon |
| Net Weight |
3.0Kgs |
| Inlet Pipe Nos |
1 / 2 / 3 Pieces at buyer's option |
| Inlet Pipe Dia |
25mm |
| Outlet Pipe Dia |
22mm |
| Adapter Size |
2 Inch |
| Suction / Head |
1.5m / 5m |
| Flowing |
22L/Min |
| Speed |
70R/Min |
| Length |
1260mm |
| Pressure |
360Psi |
| Applicable Drums |
15 - 55 Gallon |
| Applications |
Petrol, lube,kerosene,diesel,edible oils and other oils, not for water or corrosive liquids. |
| |
| Cast Iron Hand Rotary Drum Pump - 32mm 22L/Min |
| Art No |
JS-32 Cast Iron Rotary Drum Pump |
| Body Material |
Cast Iron |
| Vane |
Cast iron / Copper / Teflon |
| Pump Body Dia |
120 / 125 / 130/ 135mm |
| Net Weight |
4.5Kgs |
| Inlet Pipe Nos |
1 / 2 /3 Pieces |
| Inlet Pipe Dia |
32mm |
| Outlet Pipe Dia |
25mm |
| Adapter Size |
2 Inch |
| Suction / Head |
1.5m / 5m |
| Flowing |
22L/Min |
| Speed |
70R/Min |
| Length |
1260mm |
| Pressure |
360Psi |
| Applicable Drums |
15 - 55 Gallon |
| Applications |
Petrol, lube,kerosene,diesel,edible oils and other oils, not for water or corrosive liquids. |
| |
 |
Aluminum Hand Rotary Drum Pump - 25mm 21L/Min |
| Art No |
GT131-25mm |
| Materials |
Aluminum Alloy |
| Impeller/Vane |
Plastic-ABS / Plastic-PPS |
| Adapter & Filter |
Plastic (POM) |
| Seal Material |
NBR |
| Pump Body Dia |
115mm |
| Aluminum Pipe |
337mm x 3 |
| Pipe Thickness |
1.25mm |
| Inlet/Outlet Dia |
32mm / 25mm |
| Adapter Size |
2 Inch |
| Suction / Head |
3m / 5m |
| Flowing |
21L/Min |
| Speed |
70R/Min |
| Length |
1280mm |
| Pressure |
360Psi |
| Applicable |
15 - 55 Gallon |
| Applications |
Diesel,Kerosene |
| |
| Aluminum Hand Rotary Drum Pump - 32mm 29L/Min |
| Art No |
GT131-32mm |
| Materials |
Aluminum Alloy |
| Impeller/Vane |
Plastic-ABS / Plastic-PPS |
| Adapter & Filter |
Plastic (POM) |
| Seal Material |
NBR |
| Pump Body Dia |
135mm |
| Aluminum Pipe |
337mm x 3 |
| Pipe Thickness |
1.25mm |
| Inlet/Outlet Dia |
36mm / 32mm |
| Adapter Size |
2 Inch |
| Suction / Head |
3m / 5m |
| Flowing |
29L/Min |
| Speed |
70R/Min |
| Length |
1360mm |
| Pressure |
360Psi |
| Applicable Drums |
15 - 55 Gallon |
| Applications |
Diesel,Kerosene |
| |
 |
Rotary Hand Drum Pump Adblue - PP 25mm 21L/Min |
| Art No. |
GT145 |
| Body |
PP |
| Impellet and Vane |
PPS |
| Seal Material |
Viton |
| Screw and Nut |
304SS |
| Mounting |
2" Bung Adapter |
| Inlet / Outlet Dia |
27mm / 25mm |
| Product Length |
1280mm |
| Speed |
70R / Min |
| Capacity |
300cc / Stroke |
| Flowing |
21L/Min |
| Suction / Lift |
3m /5m |
| Applicable Drums |
15, 30, 55 Gallon |
| Packing |
1PC/BOX,10PCS/CTN |
| N/G Weight |
17/18KGS |
| Carton Size |
80 x 38 x 38cm |
| Applications |
Acid, alkali, gasoline, diesel, water, toluene, urea solution |
| |
 |

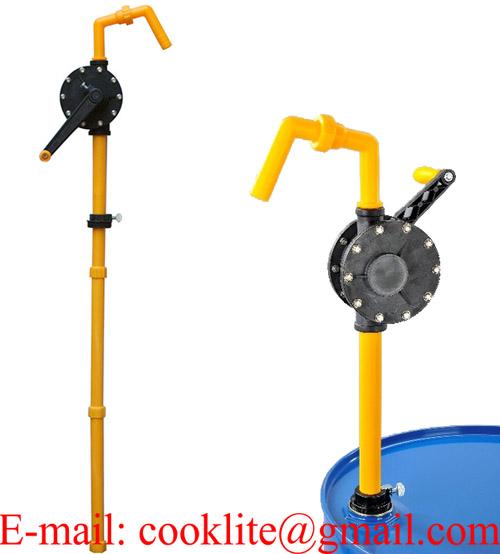

RP-90P Polypropylene Rotary Barrel Pump Def Compatible |
| Art No. |
RP-90P / GT146 |
| Body |
PP |
| Impellet and Vane |
PPS |
| Seal Material |
Viton |
| Screw and Nut |
A3 |
| Mounting |
2" Bung Adapter |
| Inlet / Outlet Dia |
32mm / 25mm |
| Product Length |
1270mm |
| Speed |
70R / Min |
| Capacity |
300cc / Stroke |
| Flowing |
20L/Min |
| Suction / Lift |
1.5m /5m |
| Applicable Drums |
5, 15, 30, 55 Gallon |
| Applications |
Acid,alkali,alcohol,diesel fuel,gasoline, machine oil,water |
| |
| RP-90R PPS Manual Rotary Drum Pump With 2" Bung |
| Art No |
RP-90R / GT147 |
| Body,Impellet,Vane |
PPS |
| Other Parts |
PP |
| Seal Material |
F4 |
| Screw and Nut |
201SS |
| Mounting |
2" Bung Adapter |
| Inlet / Outlet Dia |
32mm / 25mm |
| Product Length |
1270mm |
| Speed |
70R / Min |
| Capacity |
300cc/Stroke |
| Flowing |
20L/Min |
| Suction / Lift |
1.5m /5m |
| Applicable Drums |
5, 15, 30, 55 Gallon |
| Applications |
Acid,alkali,alcohol,diesel fuel,gasoline, machine oil,water |
| |
| RP-90RT PTFE Manual Rotary Drum Barrel Pump |
| Art No. |
RP-90RT / GT148 |
| Body |
PPS |
| Shrank Hand |
PP |
| Seal Material |
F4 |
| Screw and Nut |
201SS |
| Outlet tube |
201SS |
| Mounting |
2" Bung Adapter |
| Inlet / Outlet Dia |
32mm / 25mm |
| Product Length |
1270mm |
| Speed |
70R / Min |
| Capacity |
300cc/Stroke |
| Flowing |
20L/Min |
| Suction / Lift |
1.5m /5m |
| Applicable Drums |
5, 15, 30, 55 Gallon |
| Applications |
Acid,alkali,alcohol,diesel fuel,gasoline, machine |
| |
 |
P-490 Plastic Lever Drum Pump Viton Seals |
| Art No. |
P-490 / GT149 |
| Material |
PP + 201SS |
| Seal Material |
Viton |
| Shrank |
ABS |
| Inlet / Outlet Dia |
37mm / 22mm |
| Product Length |
1370mm |
| Speed |
55 Stroke / Min |
| Capacity |
320-350cc/Stroke |
| Flowing |
19L/Min |
| Suction / Lift |
1m /0. 5m |
| Applicable Drums |
15 - 55 Gallon |
| |
|
| P-490S Polypropylene Lever Action Barrel Pump |
| Art No. |
P-490S / GT150 |
| Material |
Strengthen PP + 304SS |
| Seal Material |
Viton |
| Shrank |
ABS |
| Inlet / Outlet Dia |
37mm / 22mm |
| Product Length |
1370mm |
| Speed |
55 Stroke / Min |
| Capacity |
320-350cc/Stroke |
| Flowing |
19L/Min |
| Suction / Lift |
1m /0. 5m |
| Applicable Drums |
15 - 55 Gallon |
| Applications |
Diesel,kerosene,engine oil,water, adblue, weak acid |
| |
| R-490S Lever Action Drum Pump with Ryton Body |
| Art No. |
R-490S / GT151 |
| Material |
PPS + 316SS |
| Seal Material |
Viton |
| Shrank |
ABS |
| Outlet Tube |
PP |
| Inlet / Outlet Dia |
37mm / 22mm |
| Product Length |
1370mm |
| Speed |
55 Stroke / Min |
| Capacity |
320-350cc/Stroke |
| Flowing |
19L/Min |
| Suction / Lift |
1m /0. 5m |
| Applicable Drums |
15 - 55 Gallon |
| Applications |
Diesel,kerosene,engine oil,water, adblue, weak acid |
| |
 |
Lever Adblue Fluid Transfer Hand Pump - 16L/Min |
| Art No. |
GT816 |
| Material |
Plastic - PE |
| Seal Material |
Viton |
| Adapter Size |
2 Inch |
| Inlet Dia |
18mm |
| Outlet Dia |
26.5mm |
| Inlet Tube Length |
985mm |
| Product Length |
1285mm |
| Speed |
30 Stroke / Min |
| Flowing |
16-18/Min |
| Packing |
1PC/BOX,6PCS/CTN |
| N/G Weight |
7.8/5KGS |
| Carton Size |
69 x 42 x 48cm |
| Applications |
Adblue, Oil ,Diesel , Acid Liquid |
| |
 |
D-490 Steel Lever Action Oil Transfer Drum Pump |
| Art No. |
GT109 Variable Stroke Oil Hand Lever Drum Pump |
| Material |
Cast Iron |
| Seal Material |
NBR |
| Piston |
PP |
| Bung Adapter |
1-1/2" & 2" |
| Inlet / Outlet Dia |
35mm / 19mm |
| Product Length |
1380mm |
| Capacity |
350cc/Stroke |
| Flowing |
20L/Min |
| Suction / Lift |
3m / 5m |
| Applicable Drums |
15 - 55 Gallon |
| Applications |
Diesel, Kerosene, Engine oil, Hydraulic Oil |
| |
| Hand Operated Lever Steel Drum Barrel Pump |
| Art No. |
GT110 Metal Lever Action Barrel Pump |
| Material |
Zinc Alloy |
| Seal Material |
NBR |
| Piston |
PP |
| Bung Adapter |
2" NPT |
| Inlet / Outlet Dia |
29mm / 22mm |
| Product Length |
56 x 56 x 1130mm |
| Capacity |
390cc/Stroke |
| Flowing |
22L/Min |
| Suction / Lift |
3m / 5m |
| Applicable Drums |
15 - 55 Gallon |
| Applications |
Diesel, Kerosene, Engine oil, Hydraulic Oil |
| |
 |
Steel Pail Pump for 5 Gallon Pails Vertical Lift Hand Pump |
| Art No. |
GT-112 |
| Material |
Chrome-electroplated Tube |
| Seal Material |
NBR |
| Piston |
PP |
| Outlet Diz |
12.7mm |
| Inlet Dia |
25.2mm |
| Frequency |
50 - 55 Stroke / Min |
| Capacity |
135cc / Stroke |
| Flowing |
7L/Min |
| Applicable Drums |
15 - 55 Gallon |
| Packing |
1PC/BOX,20PCS/CTN |
| N/G Weight |
12/15KGS |
| Carton Size |
51 x 46 x 39.5cm |
| Applications |
Heavy oil, Machine oil, Food (juice, milk, wine, water...) / Chemical (acid, alkali...) |
| |
 |
Metal / Stainless Steel Bung Manual Piston Pail Pump |
| Material |
Chrome-electroplated (GT-113) |
| 304 Stainless Steel (GT-114) |
| 316 Stainless Steel (GT-115) |
| Seal Material |
NBR |
| Piston |
PP |
| Outlet Diz |
12.7mm |
| Inlet Dia |
28.5mm |
| Frequency |
50 - 55 Stroke / Min |
| Capacity |
240cc / Stroke |
| Flowing |
13L/Min |
| Applicable Drums |
15 - 55 Gallon |
| Packing |
1PC/BOX,20PCS/CTN |
| N/G Weight |
17/22KGS |
| Carton Size |
51 x 46 x 39.5cm |
| Applications |
Heavy oil, Machine oil, Food (juice, milk, wine, water...) / Chemical (acid, alkali...) |
| |
 |
55 Gallon T-handle Pull-Up Barrel Pump Vertical Lift Hand Pump |
| Material |
Chrome-electroplated Steel (GT-111) |
| 304 Stainless Steel (GT-116) |
| Seal Material |
NBR (GT-111) / F4 (GT-116) |
| Piston |
PP |
| Outlet Diz |
19mm/16mm |
| Inlet Dia |
38.6mm/36.2mm |
| Product Length |
1090mm |
| Frequency |
45 Stroke / Min |
| Capacity |
800-850cc / Stroke |
| Flowing |
35L/Min |
| Suction / Lift |
1000mm |
| Lift |
200mm |
| Applicable Drums |
15 - 55 Gallon |
| Packing |
1PC/BOX,10PCS/CTN |
| N/G Weight |
20/22KGS |
| Carton Size |
108 x 22 x 26cm |
| Applications |
Heavy oil, Machine oil, Food (juice, milk, wine, water...) / Chemical (acid, alkali...) |
| |
 |
Drum Mounted T-Handle Pull-Up Barrel Pump |
| Material |
316SS (GT-117) |
| 304SS (GT-118) |
| Tube,Rod and Parts |
316SS(GT-117) / 304SS(GT-118) |
| Seal Material |
NBR |
| Pressure Sleeve |
PP |
| Piston |
PP(GT-117) / PTFE(GT-118) |
| Outlet Diz |
12.7mm |
| Inlet Dia |
28.5mm |
| Frequency |
50 - 55 Stroke / Min |
| Capacity |
480 - 490cc / Stroke |
| Flowing |
24L/Min |
| Applicable Drums |
15 - 55 Gallon |
| Packing |
1PC/BOX,10PCS/CTN |
| N/G Weight |
13/17.5KGS |
| Carton Size |
117 x 51 x 25.5cm |
| Applications |
Heavy oil, Machine oil, Food (juice, milk, wine, water...) / Chemical (acid, alkali...) |
| |
 |
5 Gallon PVC/Nylon Hand Pail Pump Vertical Lift Pump |
| Model |
GT-123 PVC/Nylon Hand Pail Pump |
| Inlet Dia |
34mm |
| Outlet Dia |
16mm |
| Suction Head |
56cm |
| Pump Head |
50cm |
| Flow Rate |
200ML/Stroke |
| Pump Construction |
PVC |
| Inlet Pipe |
PVC |
| Seals |
PTFE |
| Adaptor |
Universal adaptor |
| Drums |
5 Gallon |
| Net Weight |
0.34kgs |
| Additional |
A hose barb and 3/4"NPT threads at pump bottom |
| Applications |
Hydraulic fluid,transmission fluid,motor oil |
| |
 |
Piston-type Manual Transfer Pail pump |
| Model |
GT-120 Liquid Dispensing Drum Pump |
| Inlet Dia |
34 mm |
| Outlet Dia |
16 mm |
| Suction Head |
80cm |
| Pump Head |
100cm |
| Flow Rate |
520ML/Stroke |
| Pump construction |
Nylon |
| Inlet Pipe |
Nylon |
| Outlet Pipe |
Nylon |
| Seals |
PTFE |
| Plunger Rod |
Stainless Steel |
| Spring Material |
Stainless Steel |
| Adaptor |
2" NPT Male Adaptor |
| Fits |
15 - 55 Gallon Drums |
| Net Weight. |
1.1Kgs |
| |
| PP Hand Pail Pump Vertical Siphon Lift Pump |
| Model |
GT-119 PP Hand Pail Pump Vertical Lift Pump |
| Inlet Dia |
34mm |
| Outlet Dia |
16mm |
| Pump Head |
100cm |
| Flow Rate |
250ML/Stroke |
| Pump Construction |
PP |
| Inlet Pipe |
PP |
| Outlet Pipe |
PP |
| Seals |
PTFE |
| Plunger Rod |
Steel |
| Spring Material |
Steel |
| Adaptor |
2" BSP male adaptor |
| Drums |
220 Liter |
| Net Weight |
1.1kgs |
| |
 |
Car Siphon Pump Gas Oil Water Transfer Sucker |
| Art No |
DP-14 / GT127 |
| Material |
PE |
| Self-Priming |
Yes |
| Inlet/Outlet Dia |
17mm/17mm |
| Suction |
400mm |
| Lift |
450mm |
| Capacity |
7-9L/Min |
| Length |
640mm |
| Applications |
Chemicals,petroleum based fluids,water |
| |
| Liquid Fuel Transfer Plastic Siphon Pump |
| Art No. |
DP-22 / GT128 |
| Material |
PE |
| Self-Priming |
Yes |
| Inlet/Outlet Dia |
22mm/22mm |
| Suction |
850mm |
| Lift |
1400mm |
| Capacity |
13-15L/Min |
| Length |
1080mm |
| Applications |
Chemicals,petroleum based fluids,water |
| |
| Siphon Pump Fuel Gas Liquid Water Transfer Dispenser |
| Art No. |
DP-25 / GT129 |
| Material |
PE |
| Self-Priming |
Yes |
| Inlet/Outlet Dia |
25mm/25mm |
| Suction |
850mm |
| Lift |
1200mm |
| Capacity |
16-18L/Min |
| Length |
1160mm |
| Applications |
Chemicals,petroleum based fluids,water |
| |
| Plastic Siphon Chemical Pump / Syphon Manual Hand Pump |
| Art No |
DP-26 / GT129-1 |
| Materials |
PE |
| Self-Priming |
Yes |
| Inlet |
26mm |
| Outlet |
25mm |
| Suction |
850mm |
| Lift |
1400mm |
| Capacity |
16-18L/Min |
| Length |
1160mm |
| Applications |
Chemicals,petroleum based fluids,water |
|
|
|
|
| Specifications︰ | 304 Stainless Steel Rotary Chemical Drum Pump with Teflon Seals
Material: 304 Stainless Steel
Vane/Piston/Seals: Telfon
Suction Tube Length:100cm
Inlet Dia: 32mm
Outlet Dia: 27mm
Flow Rating: 240ML/R
Length: 1260mm
Flow Rate: 22L/Min
Applicable Drums: 15 - 55 Gallon
Applications: Drinking water, milk, alcohol, gasoline, diesel, kerosene, lubricant, water based chemical acid and alkali solutions, strong acid, strong alkali solutions, nitric acid, etc |
|
|
Product Image
|
|
304 Stainless Steel Rotary Chemical Drum Pump with Teflon Seals
Polypropylene Rotary Chemical Hand Drum Pump - RP-90P
RP-90R Ryton Manual Rotary Drum Pump With 2" Bung
RP-90RT PPS ( Polyphenylene ) Rotary Drum Pump With 2" Bung
Hand Lift Pump For Gear Oil
3M x 19MM Gravity Feed Hose and PP Adblue Nozzle Kit with IBC Adapter
12V 24V Submersible Liquid Fuel Water Oil Diesel Car Transfer Pump Stainless steel 51mm
|
|
|
|
