Product Description

Bomba manual rotatoria de hierro fundido



Cast Iron Rotary Hand Pump.jpg Cast Iron Rotary Drum Pump - 32mm 22L/Min
Art No JS-32 Cast Iron Rotary Drum Pump
Body Material Cast Iron
Vane Cast iron / Copper / Teflon
Pump Body Dia 120 / 125 / 130/ 135mm
Net Weight 4.5Kgs
Inlet Pipe Nos 1 / 2 /3 Pieces
Inlet Pipe Dia 32mm
Outlet Pipe Dia 25mm
Adapter Size 2 Inch
Suction / Head 1.5m / 5m
Flowing 22L/Min
Speed 70R/Min
Length 1260mm
Pressure 360Psi
Applicable Drums 15 - 55 Gallon
Applications Petrol, lube,kerosene,diesel,edible oils and other oils, not for water or corrosive liquids.
Packing 1PC/BOX,5PCS/CTN
Gross/Net Weight 22/24KGS
Packing Size 110 x 17.5 x 17.5cm

GT131 Rotary Drum Pump.jpg Aluminum Rotary Drum Pump
Model 25 Type 32 Type
Materials Aluminum Alloy
Impeller/Vane Plastic-ABS / Plastic-PPS
Spring & Pry Bar Cast Iron (galvanized)
Screw & Nut
Hand Shank Wood
Adapter & Filter Plastic (POM)
Seal Material NBR
Pump Body Dia 115mm 135mm
Aluminum Pipe 337mm x 3
Pipe Thickness 1.25mm
Inlet/Outlet Dia 32mm / 25mm 36 / 32mm
Adapter Size 2 Inch
Suction / Head 3m / 5m
Flowing 21L/Min 29L/Min
Speed 70R/Min
Length 1280mm 1360mm
Pressure 360Psi
Applicable 15 - 55 Gallon
Applications Diesel,Kerosene

 GT146 Rotary Barrel Pump.jpg GT146 Rotary Barrel Pump
Art No. RP-90P / GT146
Body  PP
Impellet and Vane PPS
Seal Material Viton
Screw and Nut A3
Mounting 2" Bung Adapter
Inlet / Outlet Dia  32mm / 25mm
Product Length 1270mm
Speed 70R / Min
Capacity 300cc / Stroke
Flowing 20L/Min
Suction / Lift 1.5m /5m
Applicable Drums 5, 15, 30, 55 Gallon
Packing 1PC/BOX,6PCS/CTN
Carton Size 38 x 35 x 44cm
Applications Acid,alkali,alcohol,diesel fuel,gasoline, machine oil,water

 GT147 Rotary Barrel Pump.jpg GT147 Rotary Barrel Pump
Art No RP-90R / GT147
Body,Impellet,Vane PPS
Other Parts PP
Seal Material F4
Screw and Nut 201SS
Mounting 2" Bung Adapter
Inlet / Outlet Dia  32mm / 25mm
Product Length 1270mm
Speed 70R / Min
Capacity 300cc/Stroke
Flowing 20L/Min
Suction / Lift 1.5m /5m
Applicable Drums 5, 15, 30, 55 Gallon
Packing 1PC/BOX,6PCS/CTN
N/G Weight 13/15KGS
Carton Size 38 x 35 x 44cm
Applications Acid,alkali,alcohol,diesel fuel,gasoline, machine oil,water

 GT148 Rotary Hand Pump.jpg GT148 Rotary Barrel Pump
Art No. RP-90RT / GT148
Body PPS
Shrank Hand PP
Seal Material F4
Screw and Nut 201SS
Outlet tube 201SS
Mounting 2" Bung Adapter
Inlet / Outlet Dia  32mm / 25mm
Product Length 1270mm
Speed 70R / Min
Capacity 300cc/Stroke
Flowing 20L/Min
Suction / Lift 1.5m /5m
Applicable Drums 5, 15, 30, 55 Gallon
Packing 1PC/BOX,6PCS/CTN
N/G Weight 14/16KGS
Carton Size 38 x 35 x 44cm
Applications Acid,alkali,alcohol,diesel fuel,gasoline, machine oil,water

 GT145 Rotary Hand Pump.jpg Rotary Hand Drum Pump Adblue - PP 25mm 21L/Min
Art No.                  GT145
Body PP
Impellet and Vane PPS
Seal Material Viton
Screw and Nut 304SS
Mounting 2" Bung Adapter
Inlet / Outlet Dia  27mm / 25mm
Product Length 1280mm
Speed 70R / Min
Capacity 300cc / Stroke
Flowing 21L/Min
Suction / Lift 3m /5m
Applicable Drums 15, 30, 55 Gallon
Packing 1PC/BOX,10PCS/CTN
N/G Weight 17/18KGS
Carton Size 80 x 38 x 38cm
Applications Acid, alkali, gasoline, diesel, water, toluene, urea solution

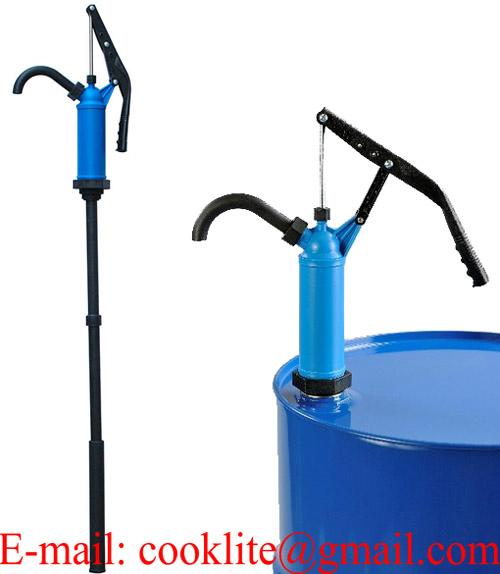

 GT149 Lever Hand Pump.jpg GT149 Lever Barrel Pump
Art No.  P-490 / GT149
 Material PP + 201SS
Seal Material Viton
Shrank ABS
Inlet / Outlet Dia  37mm / 22mm
Product Length 1370mm
Speed 55 Stroke / Min
Capacity 320-350cc/Stroke
Flowing 19L/Min
Suction / Lift 1m /0. 5m
Applicable Drums 15 - 55 Gallon
Packing 1PC/BOX,6PCS/CTN
N/G Weight 5.1/6.5KGS
Carton Size 38.5 x 32 x 28.5cm

 GT150 Lever Hand Pump.jpg GT150 Lever Barrel Pump
Art No.  P-490S / GT150
 Material Strengthen PP + 304SS
Seal Material Viton
Shrank ABS
Inlet / Outlet Dia  37mm / 22mm
Product Length 1370mm
Speed 55 Stroke / Min
Capacity 320-350cc/Stroke
Flowing 19L/Min
Suction / Lift 1m /0. 5m
Applicable Drums 15 - 55 Gallon
Packing 1PC/BOX,6PCS/CTN
N/G Weight 5.4/6.7KGS
Carton Size 38.5 x 32 x 28.5cm
Applications Diesel,kerosene,engine oil,water, adblue, weak acid

 GT151 Lever Hand Pump.jpg GT151 Lever Barrel Pump
Art No. R-490S / GT151
Material  PPS + 316SS
Seal Material Viton
Shrank ABS
Outlet Tube PP
Inlet / Outlet Dia  37mm / 22mm
Product Length 1370mm
Speed 55 Stroke / Min
Capacity 320-350cc/Stroke
Flowing 19L/Min
Suction / Lift 1m /0. 5m
Applicable Drums 15 - 55 Gallon
Packing 1PC/BOX,6PCS/CTN
N/G Weight 7.5/8.8KGS
Carton Size 38.5 x 32 x 28.5cm
Applications Diesel,kerosene,engine oil,water, adblue, weak acid

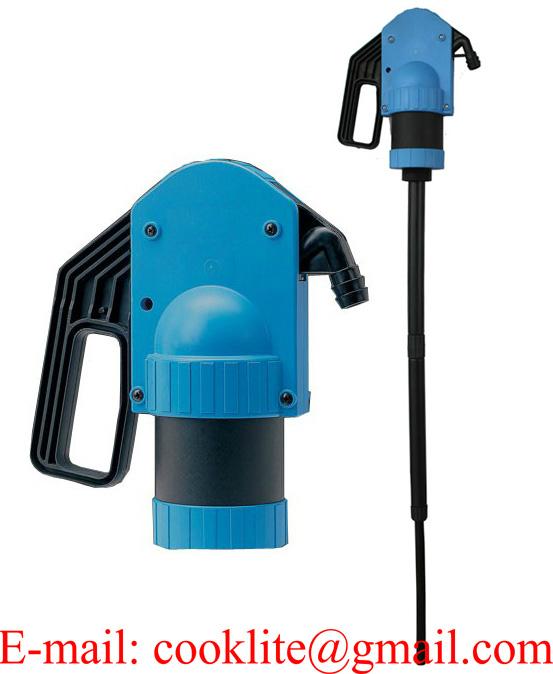

 GT816 Hand Adblue Pump.jpg Lever Adblue Fluid Transfer Hand Pump - 16L/Min
Art No.  GT816
Material Plastic - PE
Seal Material Viton
Adapter Size 2 Inch
Inlet Dia  18mm
Outlet Dia 26.5mm
Inlet Tube Length 985mm
Product Length 1285mm
Speed 30 Stroke / Min
Flowing 16-18/Min
Packing 1PC/BOX,6PCS/CTN
N/G Weight 7.8/5KGS
Carton Size 69 x 42 x 48cm
Applications Adblue, Oil ,Diesel , Acid Liquid

GT109 Drum Dispensing Pump.jpg Steel Lever Drum Pump - 19mm 20L/Min
Art No. GT109
Material Cast Iron
Seal Material NBR
Piston PP
Bung Adapter 1-1/2” & 2”
Inlet / Outlet Dia  35mm / 19mm
Product Length 1380mm
Capacity 350cc/Stroke
Flowing 20L/Min
Suction / Lift 3m / 5m
Applicable Drums 15 - 55 Gallon
Packing 1PC/BOX,10PCS/CTN
N/G Weight 20/22KGS
Carton Size 48 x 29 x 33cm
Applications Diesel, Kerosene, Engine oil,  Hydraulic Oil

Steel Lever Drum Pump - 22mm 22L/Min
Art No. GT110
Material Zinc Alloy
Seal Material NBR
Piston PP
Bung Adapter 2” NPT
Inlet / Outlet Dia  29mm / 22mm
Product Length 56 x 56 x 1130mm
Capacity 390cc/Stroke
Flowing 22L/Min
Suction / Lift 3m / 5m
Applicable Drums 15 - 55 Gallon
Packing 1PC/BOX,8PCS/CTN
N/G Weight 20/22KGS
Carton Size 49 x 38 x 40cm
Applications Diesel, Kerosene, Engine oil,  Hydraulic Oil

 Siphon Drum Pumps.jpg Plastic Siphon Pump / PE Hand Pump ( GT127 )
Art No  DP-14 / GT127
Material PE
Self-Priming Yes
Inlet 17mm
Outlet 17mm
Suction 400mm
Lift 450mm
Capacity 7-9L/Min
Length 640mm
Packing 120PCS/CTN
G.W/N.W 9/7KGS
Measurement 59x55x51mm
Applications Chemicals,petroleum based fluids,water

Plastic Siphon Pump / Plastic Defueling Pump ( GT128 )
Art No.  DP-22 / GT128
Material PE
Self-Priming Yes
Inlet 22mm
Outlet 22mm
Suction 850mm
Lift 1400mm
Capacity 13-15L/Min
Length 1080mm
Packing 36PCS/CTN
G.W/N.W 11.5/9.5KGS
Measurement 113 x 45 x 34mm
Applications Chemicals,petroleum based fluids,water

Plastic Siphon Pump / Plastic Defueling Pump ( GT129 )
Art No.  DP-25 / GT129 DP-26 / GT129-1
Material PE PE
Self-Priming Yes YES
Inlet 25mm 25mm
Outlet 25mm 25mm
Suction 850mm  850mm
Lift 1200mm 1200mm
Capacity 16-18L/Min 16-18L/Min
Length 1160mm 1160mm
Packing 36PCS/CTN 36PCS/CTN
G.W/N.W 13/11KGS 13/11KGS
Measurement 118 x 49 x 40cm 118 x 49 x 40cm
Applications Chemicals,petroleum based fluids,water

 9L Manual Extractor.jpg 9L Manual and Pneumatic Fluid Extractor
Capacity 9L
Material PP
Weight 4KG
Size 30 x 35 x 70cm
Brass Hose Dia x 1  6mm
Plastic Hose Dia x 3 4mm/8mm/10mm
Air Inlet 1/4"
Working Pressure 0~170 PSI / 0~11.9 BAR
Air Consumption 5 CFM
Package 1UNIT/BOX,2PCS/CTN
Package size 58 x 31 x 64cm
NW / GW 9Kg/10Kg

 GT116 Piston Hand Pump.jpg Steel Vertical Lift Drum Pump
Art No. GT111  GT116
Material Chromed Steel  304 Stainless Steel
Seal Material NBR / F4
Piston PP
Outlet Diz 19mm
Inlet Dia  38.6mm
Frequency 50 - 55 Stroke / Min
Capacity 850cc / Stroke
Flowing 43L/Min
Applicable Drums 15 - 55 Gallon
Packing 1PC/BOX,10PCS/CTN
N/G Weight 18.5/20.5KGS
Carton Size 112 x 42.5 x 18cm
Applications Heavy oil, Machine oil, Food (juice, milk, wine, water...) / Chemical (acid, alkali...)

 Electric Drum Pump.jpg Electric Drum Pump
Voltage 12V/24V 220V
Material Aluminum Alloy
Total Length 1.2m 1.2m
Motor Single-phase DC Morot
Power 420W 420W
Inlet Dia 44mm 44mm
Outlet Dia 25mm 25mm
Output Flowing 60L/Min 60L/Min
Suction 5m 5m
Lift 10m 10m
Cable 1.5m 1.5m
Application Diesel,Kerosene,Water
Packing 1PC/BOX,10PCS/CTN
N/G Weight 31/33KGS
Carton Size 109 x 31 x 41cm



Product Image

Bomba manual rotatoria de hierro fundido para transvase
Bomba manual rotatoria de hierro fundido para transvase

Bomba Manual Trasvasije Rotatoria Aluminio
Bomba Manual Trasvasije Rotatoria Aluminio

Bomba manual rotativa de Teflon 20L/min
Bomba manual rotativa de Teflon 20L/min

Bomba rotatoria de transvase de Polypropileno para bidon de 205 lts
Bomba rotatoria de transvase de Polypropileno para bidon de 205 lts

Bomba manual rotatoria de Ryton para transvase
Bomba manual rotatoria de Ryton para transvase

Bomba manual rotatoria de trasvasije de Ryton
Bomba manual rotatoria de trasvasije de Ryton

Bomba manual con palanca de polipropileno 20 L/min
Bomba manual con palanca de polipropileno 20 L/min

Bomba manual de Polipropileno con palanca para transvase para bidon de 60 - 205 lts
Bomba manual de Polipropileno con palanca para transvase para bidon de 60 - 205 lts

Bomba manual con palanca de Ryton para transvase 20 L/min
Bomba manual con palanca de Ryton para transvase 20 L/min

Bomba Manual de Piston Urea Trasiego AdBlue Trasvase Suzzara Blue
Bomba Manual de Piston Urea Trasiego AdBlue Trasvase Suzzara Blue

Bomba manual con palanca de acero para transvase 16 L/min
Bomba manual con palanca de acero para transvase 16 L/min

Bomba de alta presion para bidon de 20 kg
Bomba de alta presion para bidon de 20 kg

Dispensador de grasa manual para bidón 20 kg
Dispensador de grasa manual para bidón 20 kg

Bomba manual de aceite para transvase para bidon de 60 - 205 lts
Bomba manual de aceite para transvase para bidon de 60 - 205 lts

Bomba Manual Sifón Para Extraer Líquidos Agua Gasolina Auto
Bomba Manual Sifón Para Extraer Líquidos Agua Gasolina Auto

Sifón bomba para combustibles diésel gasolina aceites ligeros
Sifón bomba para combustibles diésel gasolina aceites ligeros

Bomba Sifón Plástica Trasvasadora / Bomba De Trasvasar Combustible
Bomba Sifón Plástica Trasvasadora / Bomba De Trasvasar Combustible

9L Succión aceite manual líquido caja engranajes bomba vacío transferencia
9L Succión aceite manual líquido caja engranajes bomba vacío transferencia

Bomba Extractora De Acero Inoxidable Para Tambos
Bomba Extractora De Acero Inoxidable Para Tambos

Bomba manual extracción de aceites y líquidos
Bomba manual extracción de aceites y líquidos

Related Products
ג`ריקן דלק נאטו מפח 20 ליטר
ג`ריקן דלק נאטו מפח 20 ליטר
US $ 7.3
קנקן שמן גמיש 1 ליטר
קנקן שמן גמיש 1 ליטר
US $ 1.28
아이엠 제리캔 등유통 연료통 군용제리캔 기름통
아이엠 제리캔 등유통 연료통 군용제리캔 기름통
US $ 7.25
제리캔 연료통/기름통/난로/캠핑용품
제리캔 연료통/기름통/난로/캠핑용품
US $ 7.1

Home  |  Product Catalog  |  E-mail  |  Documents  |  Contact Us  |  Hand & Drum Pump  |  Fluid Transfer Items  |  New Products  |  Plastic Funnel  |  PE Plastic Taps  |  Bilge Pumps  |  Jerry Cans  |  Sitemap  |  Mobile Version
  English     简体版     繁體版
Powered by DIYTrade.com
