Model No.︰GT-123
Brand Name︰OEM
Country of Origin︰China
Unit Price︰US $ 5.9 / PC
Minimum Order︰600 PC
Share on:

 Total 371 Related Items
Prev135136137138139Next

Product Description

Pompe en plastique piston à main / Pompe à tirette pour produits chimiques sur fûts

Specification:

Equipped with heavy-duty 560mm tube.

Flow rate: 200ml per stroke.

Easily transfer hydraulic fluid, transmission fluid and motor oil from 5 gallon pails.

Clamp holds pump in place for ease of use

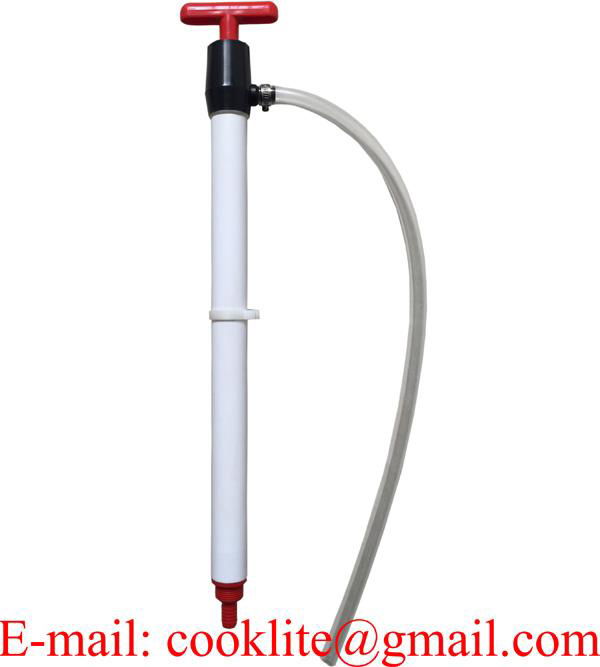

 GT-123 5 Gallon PVC/Nylon Hand Pail Pump Vertical Lift Pump
Model GT-123 PVC/Nylon Hand Pail Pump
Inlet Dia 34mm
Outlet Dia 16mm
Suction Head 56cm
Pump Head 50cm
Flow Rate 200ML/Stroke
Pump Construction PVC
Inlet Pipe  PVC
Seals PTFE
Adaptor Universal adaptor
Drums 5 Gallon
Net Weight 0.34kgs
Additional A hose barb and 3/4"NPT threads at pump bottom
Applications Hydraulic fluid,transmission fluid,motor oil

503-3 Nylon Hand Pail Pump Vertical Lift Pump
Model GT-122 Vertical Hand Lift Pump
Inlet Dia 34mm
Outlet Dia 16mm
Suction Head 40cm
Pump Head 50cm
Flow Rate 190ML/Stroke
Pump Construction Nylon
Inlet Pipe  Nylon
Outlet Pipe Nylon
Seals PTFE
Plunger Rod Stainless Steel
Spring Material Stainless Steel
Adaptor Universal adaptor
Drums 25 Liter
Net Weight 0.6 kgs

PP Hand Pail Pump Vertical Lift Pump
Model GT-121 PP Hand Pail Pump Vertical Lift Pump
Inlet Dia 34mm
Outlet Dia 16mm
Suction Head 45cm
Pump Head 50cm
Flow Rate 250ML/Stroke
Pump Construction PP
Inlet Pipe  PP
Outlet Pipe PP
Seals PTFE
Plunger Rod Steel
Spring Material Steel
Adaptor 2" BSP male adaptor
Drums 25 Liter
Net Weight 0.4kgs

503-1-4 Piston-type Manual Transfer Pail pump
Model GT-120 Liquid Dispensing Drum Pump
Inlet Dia 34 mm
Outlet Dia 16 mm
Suction Head 80cm
Pump Head 100cm
Flow Rate 520ML/Stroke
Pump construction Nylon
Inlet Pipe  Nylon
Outlet Pipe Nylon
Seals PTFE
Plunger Rod Stainless Steel
Spring Material Stainless Steel
Adaptor 2" NPT Male Adaptor
Fits 15 - 55 Gallon Drums
Net Weight. 1.1Kgs

PP Hand Pail Pump Vertical Siphon Lift Pump
Model GT-119 PP Hand Pail Pump Vertical Lift Pump
Inlet Dia 34mm
Outlet Dia 16mm
Pump Head 100cm
Flow Rate 250ML/Stroke
Pump Construction PP
Inlet Pipe  PP
Outlet Pipe PP
Seals PTFE
Plunger Rod Steel
Spring Material Steel
Adaptor 2" BSP male adaptor
Drums 220 Liter
Net Weight 1.1kgs

503-6-250-1 Hand Operated Siphon Lift Drum Pump
Model GT-130 Plastic Vertical Hand Lift Pump
Inlet Dia 43mm
Outlet Dia 22mm
Suction Head 94cm
Pump Head 104cm
Flow Rate 200ML/Stroke
Pump Construction PP
Inlet Pipe  PP
Outlet Pipe PP
Seals Buna N/Nitrile
Connecting rod PE
Color Green
Bucket Adaptor 2"BSP or M63
Application AdBlue
Net Weight 0.8Kgs

GT-817 Manual Gear Oil Transfer Pump
Model GT-817 Gear Oil Transfer Pump
Body Material PP,PVC,COPPER,STEEL
Adapter 2" Male NPT Adaptor  & 2" female BSP to DIN 61 female adaptor
Inlet Pipe Numbers 2 Pieces
Max Working 10Bar/1Mpa
Flow Rate 0.13L/Stroke
Outlet Hose Dia 18mm X 1.5m
Inlet Pipe Dia 33mm
Product Length 560mm
Applicable Drum  20-25 Litre
Packing 10PCS/CTN
G/N Weight 11.5/10.5KGS
Measurement 72 x 48 x 26CM
Applications Gear oil,diesel.kerosene.engine oil.hydraulic oil

Plastic Tire Sealant Hand Pump
Model GT-818 Manual Tire Sealant Pump
Body Material PP,PVC,COPPER,STEEL
Adapter 2" Male NPT Adaptor  & 2" female BSP to DIN 61 female adaptor
Inlet Pipe Numbers 1 Pieces
Max Working 10Bar/1Mpa
Flow Rate 0.26L/Stroke
Outlet Hose Dia 18mm X 1.5m
Inlet Pipe Dia 33mm
Product Length 560mm
Applicable Drum  20-25 Litre
Packing 10PCS/CTN
G/N Weight 13.8/13KGS
Measurement 72 x 48 x 26CM
Applications Tire Sealant

 504-3 Hand Operated Tyre Sealant Pump
Model GT-819 Hand Tire Sealant Pump
Inlet Dia 33mm
Outlet Dia 14mm
Suction Head 50cm
Pump Head 70cm
Flow Rate 200ML/Stroke
Pump Construction PP
Color Black
Inlet Pipe  PP
Outlet Pipe PP
Seals NBR
Connecting rod Steel plated
Extension pipe PVC
Outlet Nozzle Copper valve
Bucket Adaptor 2" BSP or M54
Application Glue
Net Weight 0.8Kgs

 504-4 5 Gallon Tyre Balancer and Sealant Pail Hand Pump
Model GT-815 Tire sealer slime pump only 5gal alloy
Pump Construction Aluminum
Suction Tube 50cm x 1
Inlet Tube Nos 1 PC
Flow Rate 300ML/Stroke
Color Silver
Inlet tube Aluminum
Seals NBR
Connecting rod Steel plated
Outlet pipe PVC
Outlet Nozzle Copper valve
Bucket Adaptor 2" Male BSP
Application Glue,Tire Sealant
Applicable pails 20-25L

 GT-112 Steel Pail Pump for 5 Gallon Pails Vertical Lift Hand Pump
Art No. GT-112
Material Chrome-electroplated Tube
Seal Material NBR
Piston PP
Outlet Diz 12.7mm
Inlet Dia  25.2mm
Frequency 50 - 55 Stroke / Min
Capacity 135cc / Stroke
Flowing 7L/Min
Applicable Drums 15 - 55 Gallon
Packing 1PC/BOX,20PCS/CTN
N/G Weight 12/15KGS
Carton Size 51 x 46 x 39.5cm
Applications Heavy oil, Machine oil, Food (juice, milk, wine, water...) / Chemical (acid, alkali...)

 GT116 Piston Hand Pump 55 Gallon T-handle Pull-Up Barrel Pump Vertical Lift Hand Pump
Material Chrome-electroplated Steel (GT-111)
304 Stainless Steel (GT-116)
Seal Material NBR (GT-111) / F4 (GT-116)
Piston PP
Outlet Diz 19mm/16mm
Inlet Dia  38.6mm/36.2mm
Product Length 1090mm
Frequency 45 Stroke / Min
Capacity 800-850cc / Stroke
Flowing 35L/Min
Suction / Lift 1000mm
Lift 200mm
Applicable Drums 15 - 55 Gallon
Packing 1PC/BOX,10PCS/CTN
N/G Weight 20/22KGS
Carton Size 108 x 22 x 26cm
Applications Heavy oil, Machine oil, Food (juice, milk, wine, water...) / Chemical (acid, alkali...)

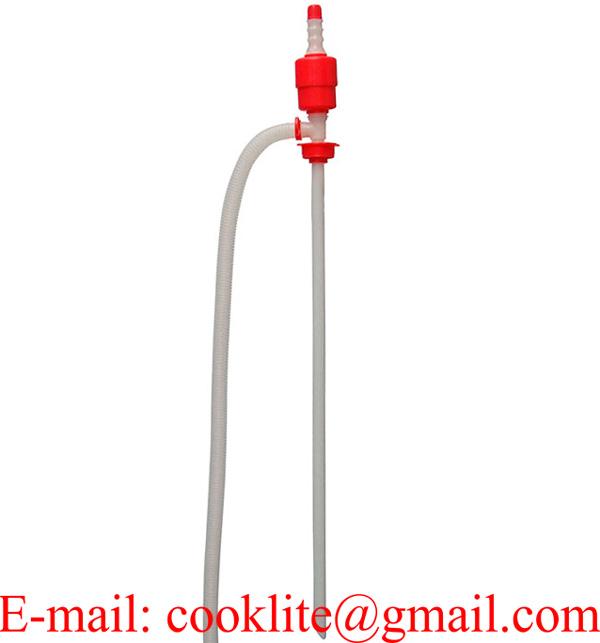

 Siphon Drum Pumps Car Siphon Pump Gas Oil Water Transfer Sucker
Art No  DP-14 / GT127
Material PE
Self-Priming Yes
Inlet/Outlet Dia 17mm/17mm
Suction 400mm
Lift 450mm
Capacity 7-9L/Min
Length 640mm
Applications Chemicals,petroleum based fluids,water

Liquid Fuel Transfer Plastic Siphon Pump
Art No.  DP-22 / GT128
Material PE
Self-Priming Yes
Inlet/Outlet Dia 22mm/22mm
Suction 850mm
Lift 1400mm
Capacity 13-15L/Min
Length 1080mm
Applications Chemicals,petroleum based fluids,water

Siphon Pump Fuel Gas Liquid Water Transfer Dispenser
Art No.  DP-25 / GT129
Material PE
Self-Priming Yes
Inlet/Outlet Dia 25mm/25mm
Suction 850mm
Lift 1200mm
Capacity 16-18L/Min
Length 1160mm
Applications Chemicals,petroleum based fluids,water

Jiggle Siphon Self Priming Shaker Siphon Hose Brass Jiggler Pump
Model GT-125 Shaker Siphon Hose Jiggler Pump
Materials PVC anti-static fuel hose
Hose Color Transparent light blue
Hose Dia 16mm
Hose Thickness 1.8-2mm
Pump Head Copper with glass ball
Overall Length 183cm
Net Weight 290g
Flow Rate 14L/Minute
Applications Water,antifreeze,diesel,kerosene and
non-corrosive liquids
Packing 3 Zip Ties

 Lever Pumps P-490 Plastic Lever Drum Pump Viton Seals
Art No.  P-490 / GT149
 Material PP + 201SS
Seal Material Viton
Shrank ABS
Inlet / Outlet Dia  37mm / 22mm
Product Length 1370mm
Speed 55 Stroke / Min
Capacity 320-350cc/Stroke
Flowing 19L/Min
Suction / Lift 1m /0. 5m
Applicable Drums 15 - 55 Gallon

P-490S Polypropylene Lever Action Barrel Pump
Art No.  P-490S / GT150
 Material Strengthen PP + 304SS
Seal Material Viton
Shrank ABS
Inlet / Outlet Dia  37mm / 22mm
Product Length 1370mm
Speed 55 Stroke / Min
Capacity 320-350cc/Stroke
Flowing 19L/Min
Suction / Lift 1m /0. 5m
Applicable Drums 15 - 55 Gallon
Applications Diesel,kerosene,engine oil,water, adblue, weak acid

R-490S Lever Action Drum Pump with Ryton Body
Art No. R-490S / GT151
Material  PPS + 316SS
Seal Material Viton
Shrank ABS
Outlet Tube PP
Inlet / Outlet Dia  37mm / 22mm
Product Length 1370mm
Speed 55 Stroke / Min
Capacity 320-350cc/Stroke
Flowing 19L/Min
Suction / Lift 1m /0. 5m
Applicable Drums 15 - 55 Gallon
Applications Diesel,kerosene,engine oil,water, adblue, weak acid

 GT816 Hand Adblue Pump Lever Adblue Fluid Transfer Hand Pump - 16L/Min
Art No.  GT816
Material Plastic - PE
Seal Material Viton
Adapter Size 2 Inch
Inlet Dia  18mm
Outlet Dia 26.5mm
Inlet Tube Length 985mm
Product Length 1285mm
Speed 30 Stroke / Min
Flowing 16-18/Min
Packing 1PC/BOX,6PCS/CTN
N/G Weight 7.8/5KGS
Carton Size 69 x 42 x 48cm
Applications Adblue, Oil ,Diesel , Acid Liquid

 GT145 DEF Rotary Hand Pump Rotary Hand Drum Pump Adblue - PP 25mm 21L/Min
Art No.                  GT145
Body PP
Impellet and Vane PPS
Seal Material Viton
Screw and Nut 304SS
Mounting 2" Bung Adapter
Inlet / Outlet Dia  27mm / 25mm
Product Length 1280mm
Speed 70R / Min
Capacity 300cc / Stroke
Flowing 21L/Min
Suction / Lift 3m /5m
Applicable Drums 15, 30, 55 Gallon
Packing 1PC/BOX,10PCS/CTN
N/G Weight 17/18KGS
Carton Size 80 x 38 x 38cm
Applications Acid, alkali, gasoline, diesel, water, toluene, urea solution

 3 Rotary Pump RP-90P Polypropylene Rotary Barrel Pump Def Compatible
Art No. RP-90P / GT146
Body  PP
Impellet and Vane PPS
Seal Material Viton
Screw and Nut A3
Mounting 2" Bung Adapter
Inlet / Outlet Dia  32mm / 25mm
Product Length 1270mm
Speed 70R / Min
Capacity 300cc / Stroke
Flowing 20L/Min
Suction / Lift 1.5m /5m
Applicable Drums 5, 15, 30, 55 Gallon
Applications Acid,alkali,alcohol,diesel fuel,gasoline, machine oil,water

RP-90R PPS Manual Rotary Drum Pump With 2" Bung
Art No RP-90R / GT147
Body,Impellet,Vane PPS
Other Parts PP
Seal Material F4
Screw and Nut 201SS
Mounting 2" Bung Adapter
Inlet / Outlet Dia  32mm / 25mm
Product Length 1270mm
Speed 70R / Min
Capacity 300cc/Stroke
Flowing 20L/Min
Suction / Lift 1.5m /5m
Applicable Drums 5, 15, 30, 55 Gallon
Applications Acid,alkali,alcohol,diesel fuel,gasoline, machine oil,water

RP-90RT PTFE Manual Rotary Drum Barrel Pump
Art No. RP-90RT / GT148
Body PPS
Shrank Hand PP
Seal Material F4
Screw and Nut 201SS
Outlet tube 201SS
Mounting 2" Bung Adapter
Inlet / Outlet Dia           32mm / 25mm
Product Length 1270mm
Speed 70R / Min
Capacity 300cc/Stroke
Flowing 20L/Min
Suction / Lift 1.5m /5m
Applicable Drums 5, 15, 30, 55 Gallon
Applications Acid,alkali,alcohol,diesel fuel,gasoline, machine
Specifications︰Pompe en plastique piston à main / Pompe à tirette pour produits chimiques sur fûts

Specification:

Equipped with heavy-duty 560mm tube.

Flow rate: 200ml per stroke.

Easily transfer hydraulic fluid, transmission fluid and motor oil from 5 gallon pails.

Clamp holds pump in place for ease of use
Product Image

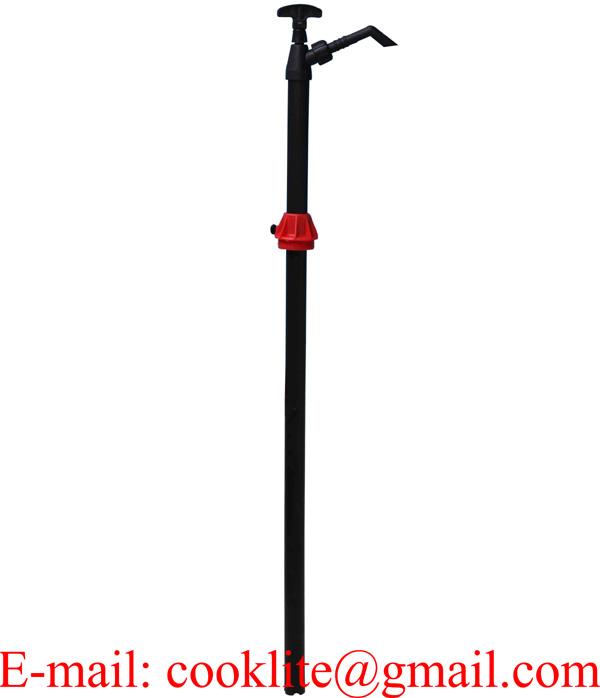

Pompe en plastique piston à main / Pompe à tirette pour produits chimiques sur fûts
Pompe en plastique piston à main / Pompe à tirette pour produits chimiques sur fûts

Pompe vide- fûts Challenger - tube de bonde et conduite montante
Pompe vide- fûts Challenger - tube de bonde et conduite montante

Pompe manuelle de remplissage LPS - pour huile de chauffage et lubrifiants - pour bidon de 25l
Pompe manuelle de remplissage LPS - pour huile de chauffage et lubrifiants - pour bidon de 25l

Pompe manuelle de remplissage LPS - pour huile de chauffage et lubrifiants - pour fût de 200l
Pompe manuelle de remplissage LPS - pour huile de chauffage et lubrifiants - pour fût de 200l

Pompe à siphon de transvasement ou à gonfler
Pompe à siphon de transvasement ou à gonfler

Tuyau de pompage pompe à tuyau pompe de transvasement
Tuyau de pompage pompe à tuyau pompe de transvasement

Pompe manuelle à poussoir de remplissage pour tous fluides non-corrosifs
Pompe manuelle à poussoir de remplissage pour tous fluides non-corrosifs

Pompe de remplissage manuelle pour poêle à pétrole
Pompe de remplissage manuelle pour poêle à pétrole

Pompe syphon Polyéthylène grand modele
Pompe syphon Polyéthylène grand modele

Pompe manuelle à poussoir pour détergents
Pompe manuelle à poussoir pour détergents

Pompe de transfert manuel à piston pour produits chimiques
Pompe de transfert manuel à piston pour produits chimiques

Pompe de transfert manuel à piston pour adBlue
Pompe de transfert manuel à piston pour adBlue

Pompe manuelle à piston avec tube plongeur pour fût
Pompe manuelle à piston avec tube plongeur pour fût

Pompe manuelle à levier pour huiles
Pompe manuelle à levier pour huiles

Pompe manuelle rotative gasoil et huile
Pompe manuelle rotative gasoil et huile

Pompe à main manuelle pour fûts et Barils de 200l
Pompe à main manuelle pour fûts et Barils de 200l

Pompe de transvasement manuelle pour fût / Pompe à essence manuelle rotative
Pompe de transvasement manuelle pour fût / Pompe à essence manuelle rotative

Pompe polypropylène à piston P490S
Pompe polypropylène à piston P490S

Pompe de transvasement chimique
Pompe de transvasement chimique

Pompe de transvasement à piston auto amorcante multi-liquides
Pompe de transvasement à piston auto amorcante multi-liquides

Related Products
ג`ריקן דלק נאטו מפח 20 ליטר
ג`ריקן דלק נאטו מפח 20 ליטר
US $ 7.3
קנקן שמן גמיש 1 ליטר
קנקן שמן גמיש 1 ליטר
US $ 1.28
아이엠 제리캔 등유통 연료통 군용제리캔 기름통
아이엠 제리캔 등유통 연료통 군용제리캔 기름통
US $ 7.25
제리캔 연료통/기름통/난로/캠핑용품
제리캔 연료통/기름통/난로/캠핑용품
US $ 7.1

Home  |  Product Catalog  |  E-mail  |  Documents  |  Contact Us  |  Hand & Drum Pump  |  Fluid Transfer Items  |  New Products  |  Plastic Funnel  |  PE Plastic Taps  |  Bilge Pumps  |  Jerry Cans  |  Sitemap  |  Mobile Version
  English     简体版     繁體版
Powered by DIYTrade.com
