Diesel Fuel Transfer Pump Kit Mini Dispenser - 175W DC 12V/24V |
Art No |
DC Pump Kit with Manual Nozzle |
Certificate |
CE |
Included |
Pump + Hose + Fuel Nozzle |
Voltage |
DC 12V/24V |
Power |
175W |
Inlet/Outlet Dia |
BSPT/NPT 3/4'Inch |
Impeller Shaft |
No.45 Powder Metallurgy |
Flow |
45L/Min |
Suction/Lift |
3m/7m |
Packing |
1SET/BOX,2SET/CTN |
N.W/G.W |
14/15KGS |
Carton Size |
75 x 37.5 x 19.5cm |
Applications |
Diesel,Kerosene |
|
 |
Metering Diesel Fuel Transfer Pump Kit Portable Dispenser |
Art No |
DC Pump Kit with Metering Nozzle |
Certificate |
CE |
Included |
Pump + Hose + Metering Manual Nozzle |
Voltage |
DC 12V/24V |
Power |
175W |
Inlet/Outlet Dia |
BSPT/NPT 3/4'Inch |
Impeller Shaft |
No.45 Powder Metallurgy |
Flow |
45L/Min |
Suction/Lift |
3m/7m |
Packing |
1SET/BOX,2SET/CTN |
N.W/G.W |
14/15KGS |
Carton Size |
75 x 37.5 x 19.5cm |
Applications |
Diesel,Kerosene |
|
 |
Diesel Fuel Transfer Pump Kit Mini Dispenser - 175W DC 12V/24V |
Art No |
DC Pump Kit with Automatic Nozzle |
Certificate |
CE |
Included |
Pump + Hose + Auto Fuel Nozzle |
Voltage |
DC 12V/24V |
Power |
175W |
Inlet/Outlet Dia |
BSPT/NPT 3/4'Inch |
Impeller Shaft |
No.45 Powder Metallurgy |
Flow |
45L/Min |
Suction/Lift |
3m/7m |
Packing |
1SET/BOX,2SET/CTN |
N.W/G.W |
14/15KGS |
Carton Size |
75 x 37.5 x 19.5cm |
Applications |
Diesel,Kerosene |
|
 |
Diesel Fuel Transfer Pump Kit Mini Dispenser - 175W DC 12V/24V |
Art No |
DC Pump Kit with Metering Automatic Nozzle |
Certificate |
CE |
Included |
Pump + Hose + Metering Auto Fuel Nozzle |
Voltage |
DC 12V/24V |
Power |
175W |
Inlet/Outlet Dia |
BSPT/NPT 3/4'Inch |
Flow |
0-50L/Min |
Suction/Lift |
3m/7m |
Suction Hose |
2m |
Delivery Hose |
4m |
Packing |
1SET/BOX,2SET/CTN |
N.W/G.W |
17/18KGS |
Carton Size |
56 x 45.5 x 31.5cm |
Applications |
Diesel,Kerosene |
|
 |
Mini Diesel Fuel Dispenser - 45L/Min 175W DC 12V/24V |
Art No. |
GT820 - DC |
Certificate |
CE |
Voltage |
DC 12V/24V |
Power |
175W |
Speed |
4500R/Min |
Flow |
45L/Min |
Suction/Lift |
3m/7m |
Packing |
1SET/CTN |
N.W/G.W |
13/14KGS |
Carton Size |
42.5 x 33.5 x 32cm |
Applications |
Diesel,Kerosene |
|
 |
Mini Diesel Fuel Dispenser - 45L/Min 175W DC 12V/24V |
Art No. |
GT820 - DC |
Certificate |
CE |
Voltage |
DC 12V/24V |
Power |
175W |
Speed |
4500R/Min |
Flow |
45L/Min |
Suction/Lift |
3m/7m |
Packing |
1SET/CTN |
N.W/G.W |
13/14KGS |
Carton Size |
42.5 x 33.5 x 32cm |
Applications |
Diesel,Kerosene |
|
 |

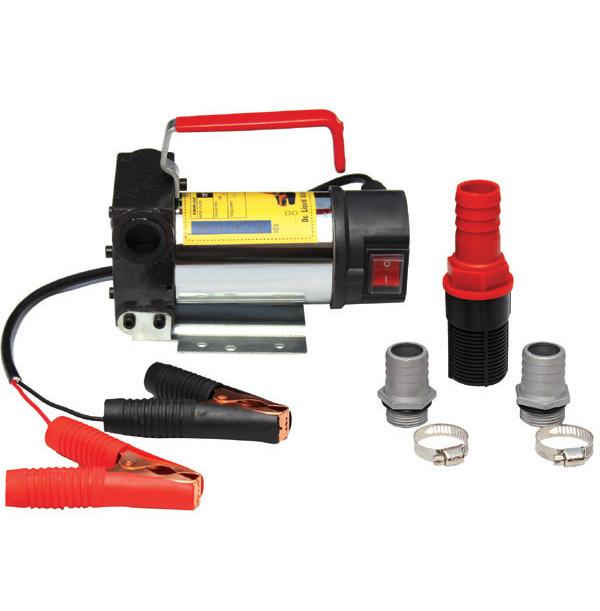

Fuel Oil Diesel Transfer Pump - 45L/Min 175W DC 12V/24V |
Art No |
DC 12V/24V 175W 45L/Min |
Certificate |
CE |
Voltage |
DC 12V/24V |
Power |
175W |
Inlet/Outlet Dia |
25mm/25mm |
Impeller Shaft |
No.45 Powder Metallurgy |
Flow |
45L/Min |
Suction/Lift |
5m/10m |
Net Weight |
3.7KGS |
Packing |
1SET/BOX,6SET/CTN |
N.W/G.W |
23/24KGS |
Carton Size |
59 x 52 x 21cm |
Applications |
Diesel,Kerosene |
|
 |
Diesel Fuel Transfer Pump - 70L/Min 550W DC 12V/24V |
Voltage |
DC 12V/24V |
Power |
550W |
Inlet/Outlet Dia |
25mm/25mm |
Impeller Shaft |
No.45 Powder Metallurgy |
Flow Rate |
70L/Min |
Suction |
5m |
Lift |
10m |
Packing |
1SET/BOX,6SET/CTN |
N.W/G.W |
32/36KGS |
Carton Size |
54 x 27 x 39cm |
Applications |
Diesel,Kerosene |
|
 |
12V/24V Engine Oil Transfer Pump |
Art No |
DC 12V/24V 100W Engine Oil Transfer Pump |
Certificate |
CE |
Theory |
Gear Pump |
Voltage |
DC 12V/24V |
Power |
100W |
No-Load Current |
2.5A |
Load Current |
5A |
Worke Cycle |
30 Min |
Flow |
1-4L/Min |
Inlet Tube |
6mm x 800mm Copper Tube |
8mmx1000mm PU Tube |
Outlet Tube |
10mmx1000mm PU Tube |
Packing |
12PCS/CTN |
N.W/G.W |
19.5/22KGS |
Carton Size |
54 x 42 x 31cm |
|
 |

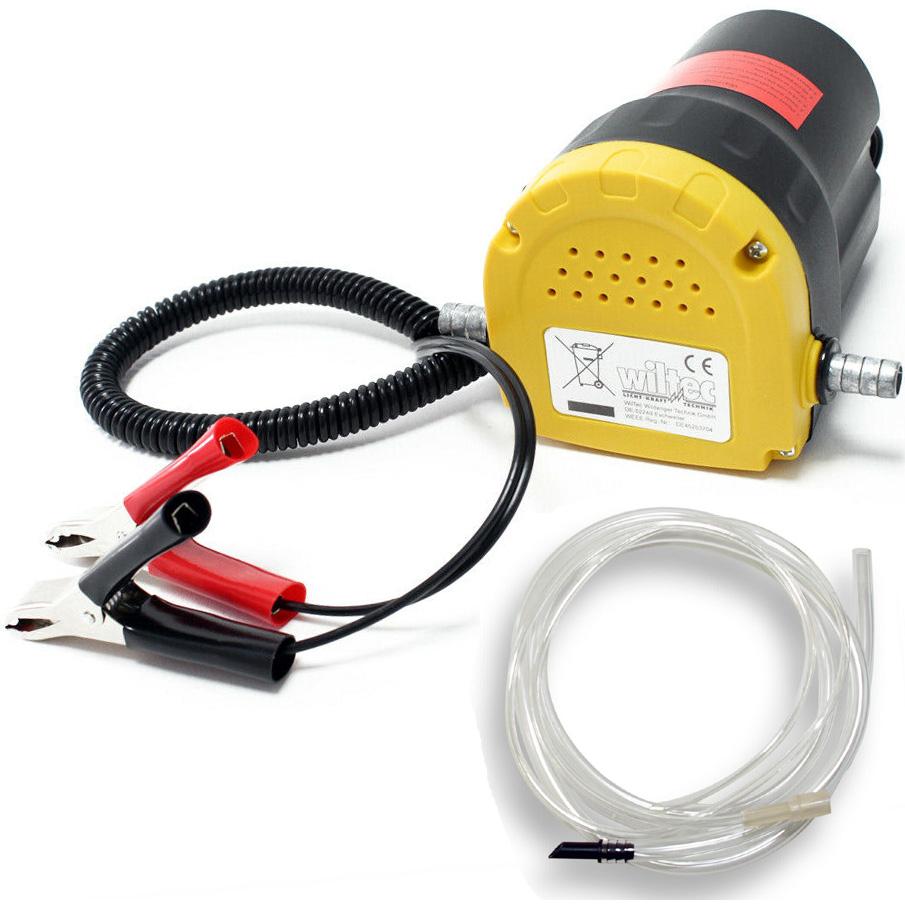

12V Diesel Heating Motor Oil Extractor Pump |
Art No |
DC 12V 60W Engine Oil Transfer Pump |
Maximum Current |
5A |
Maximum Power |
60W |
Sound Pressure Level |
70dB(A) |
Power Supply |
12V- vehicle battery |
Diesel/Heating Oil Flow Rate |
250L/H |
Motor oil (40-60 degrees) Flow Rate |
1L/Min |
Oil Extractor Pump Size |
13 x 8 x 8.5cm ( L x W x H ) |
Input Hose |
1.2m/6mm/4mm (Length/Outer Dia/Inner Dia) |
Outlet Hose |
1.5m/12mm/10mm (Length/Outer Dia/Inner Dia) |
Packing |
10PCS/CTN |
N.W/G.W |
9/10KGS |
Carton Size |
46.5 x 23 x 39.5cm |
|
 |
Diesel Fuel Transfer Pump - 60L/Min 550W AC 220-240V |
Art No |
AC 220V 550W 60L/Min |
Certificate |
CE |
Voltage |
AC 220-240V |
Power |
550W |
Frequency |
50HZ |
Inlet/Outlet Dia |
25mm/25mm |
Impeller Shaft |
No.45 Powder Metallurgy |
Speed |
2800R/Min |
Flow |
60L/Min |
Suction/Lift |
5m/10m |
Packing |
1UNIT/BOX,2UNITS/CTN |
Net Weight |
8.5KGS |
N.W/G.W |
17/18KGS |
Carton Size |
45 x 32 x 23cm |
Applications |
Diesel,Kerosene |
|
 |
Diesel Fuel Transfer Pump Kit Mini Dispenser - 550W AC 220-240V |
Art No |
AC Pump Kit |
Certificate |
CE |
Included |
Pump + Hose + Flow Meter + Manual Nozzle |
Voltage |
AC 220-240V |
Power |
550W |
Inlet/Outlet Dia |
25mm/25mm |
Motor Coil Material |
100%Full copper |
Flow |
60L/Min |
Suction/Lift |
5m/10m |
Suction Hose |
2m |
Delivery Hose |
4m |
Packing |
1UNIT/BOX,2UNITS/CTN |
N.W/G.W |
26/27KGS |
Carton Size |
76 x 38.5 x 23.5cm |
Applications |
Diesel,Kerosene |
|
 |
Diesel Fuel Transfer Pump Kit Mini Dispenser - 550W AC 220-240V |
Art No |
AC Pump Kit |
Certificate |
CE |
Included |
Pump + Hose + Flow Meter + Manual Nozzle |
Voltage |
AC 220-240V |
Power |
550W |
Inlet/Outlet Dia |
25mm/25mm |
Motor Coil Material |
100%Full copper |
Flow |
60L/Min |
Suction/Lift |
5m/10m |
Suction Hose |
2m |
Delivery Hose |
4m |
Packing |
1UNIT/BOX,2UNITS/CTN |
N.W/G.W |
26/27KGS |
Carton Size |
76 x 38.5 x 23.5cm |
Applications |
Diesel,Kerosene |
|
 |
Mini Diesel Fuel Dispenser - 60L/Min 550W AC 220-240V |
Art No |
GT820 - AC |
Certificate |
CE |
Voltage |
AC 220-240V |
Power |
550W |
Frequency |
50HZ |
Inlet/Outlet Dia |
25mm/25mm |
Speed |
2800R/Min |
Flow |
60L/Min |
Suction/Lift |
5m/10m |
Packing |
1SET/CTN |
N.W/G.W |
17/18KGS |
Carton Size |
42.5 x 33.5 x 32cm |
Applications |
Diesel,Kerosene |
|
 |
Mini Diesel Fuel Dispenser - 60L/Min 550W AC 220-240V |
Art No |
GT820 - AC |
Certificate |
CE |
Voltage |
AC 220-240V |
Power |
550W |
Frequency |
50HZ |
Inlet/Outlet Dia |
25mm/25mm |
Speed |
2800R/Min |
Flow |
60L/Min |
Suction/Lift |
5m/10m |
Packing |
1SET/CTN |
N.W/G.W |
17/18KGS |
Carton Size |
42.5 x 33.5 x 32cm |
Applications |
Diesel,Kerosene |
