Manueel afgiftepistool met digitale teller
 |
SS304 Manual Diesel Fuel Nozzle |
| Material |
Stainless steel 304 |
| Outlet O.D. |
22mm |
| Inlet |
3/4" NPT female adaptor |
| Flow Rate |
0-80litre/minute |
| Applications:water,alcohol,gasoline,deisel,kerosene,lubricant,water based chemical acid and alkali solutions |
| Packing |
20PCS/CTN |
| G/N Weight |
23/24KGS |
| Carton Size |
47x29x17cm |
| |
 |

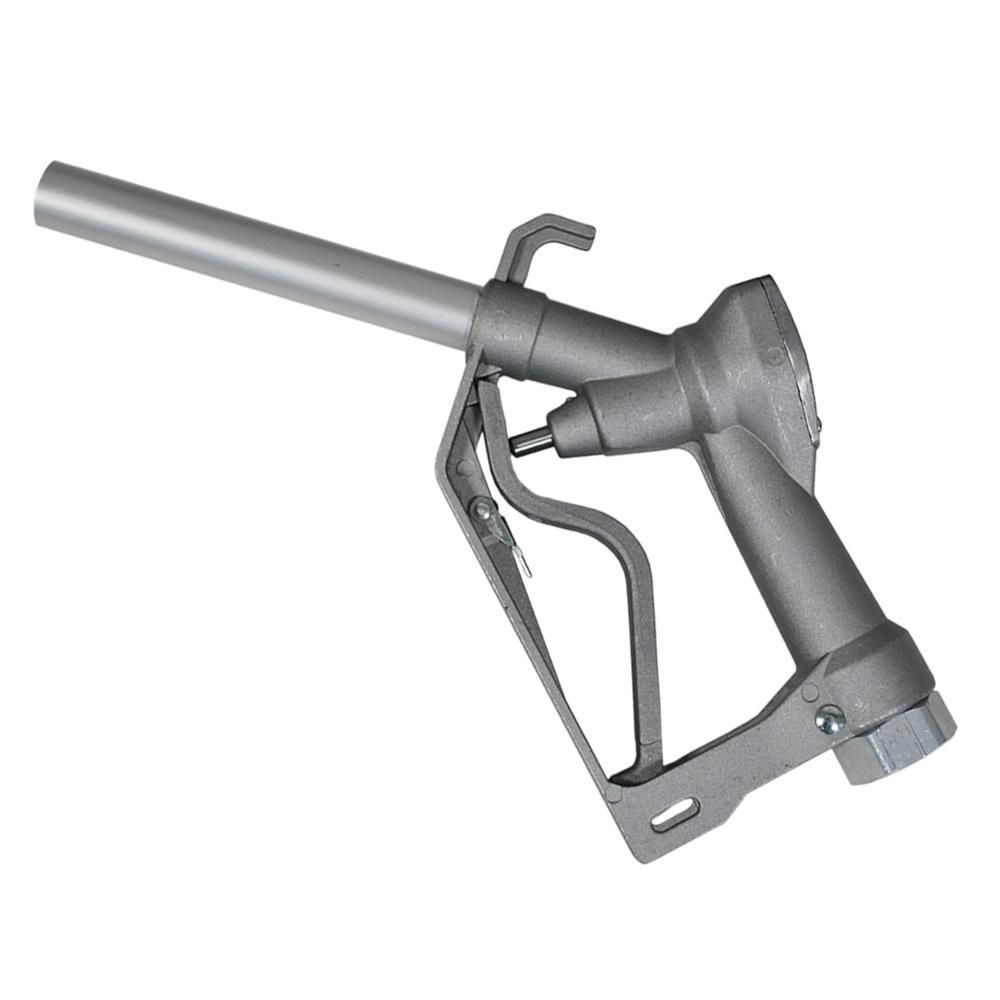

Aluminum Manual Diesel Fuel Nozzle |
| Material |
Aluminum |
| Connection |
BSP/NPT Thread |
| Inlet Dia |
BSPT/NPT 3/4" or 1" |
| Outlet Dia |
15/16' |
| Flow Rate |
0-60L/Min |
| Nominal Pressure |
0.20MPa |
| Net Weight |
0.68KGS |
| Packing |
1UNIT/BOX,10UNITS/CTN |
| N.W/G.W |
11/12KGS |
| Carton Size |
42 x 34 x 40cm |
| Applications |
Gasoline,Diesel,Kerosene |
| |
 |
Aluminum Automatic Diesel Fuel Nozzle |
| Material |
Aluminum |
| Connection |
BSP/NPT Thread |
| Inlet Dia |
BSPT/NPT 3/4' |
| Outlet Dia |
13/16' & 15/16' |
| Flow Rate |
0-60L/Min or 0-45L/Min |
| Color |
Red/Blue/Black |
| Nominal Pressure |
0.18MPa |
| Self sealing time |
0.1S (Max) |
| Net Weight |
1.13KGS |
| Packing |
1UNIT/BOX,10UNITS/CTN |
| N.W/G.W |
13/14KGS |
| Carton Size |
42 x 34 x 40cm |
| Applications |
Gasoline,Diesel,Kerosene |
| |
 |
Metering Fuel Diesel Kerosene Gasoline Nozzle Fuelling Gun |
| Material |
Aluminum Alloy |
| Inlet Dia |
BSP/NPT1’’ |
| Net Weight |
1.4kgs |
| Flow Rate |
15-40L/Min |
| Accuracy |
±1% |
| Max Pressure |
≤0.4 Mpa |
| Display |
LCD Digital |
| Metering Range |
1~9999 |
| Packing |
1UNIT/BOX,10UNITS/CTN |
| N.W/G.W |
14/15KGS |
| Carton Size |
42 x 34 x 40cm |
| Applications |
Diesel,Kerosene,Gasoline |
| |
 |
Automatic Fuel Nozzle 1" 120 Oil Gun |
| Size |
450x150x30mm |
| Connection |
BSP/NPT Thread |
| Inlet Dia |
BSPT/NPT 1' |
| Outlet Dia |
16/19' |
| Flow Rate |
0-120L/Min |
| Color |
Red, Blue |
| Max Pressure |
1 MPa |
| Net Weight |
1.4KGS |
| Packing |
1UNIT/BOX,10UNITS/CTN |
| N.W/G.W |
16/17KGS |
| Carton Size |
51 x 38 x 45cm |
| Applications |
Gasoline,Diesel,Kerosene |
| |
 |

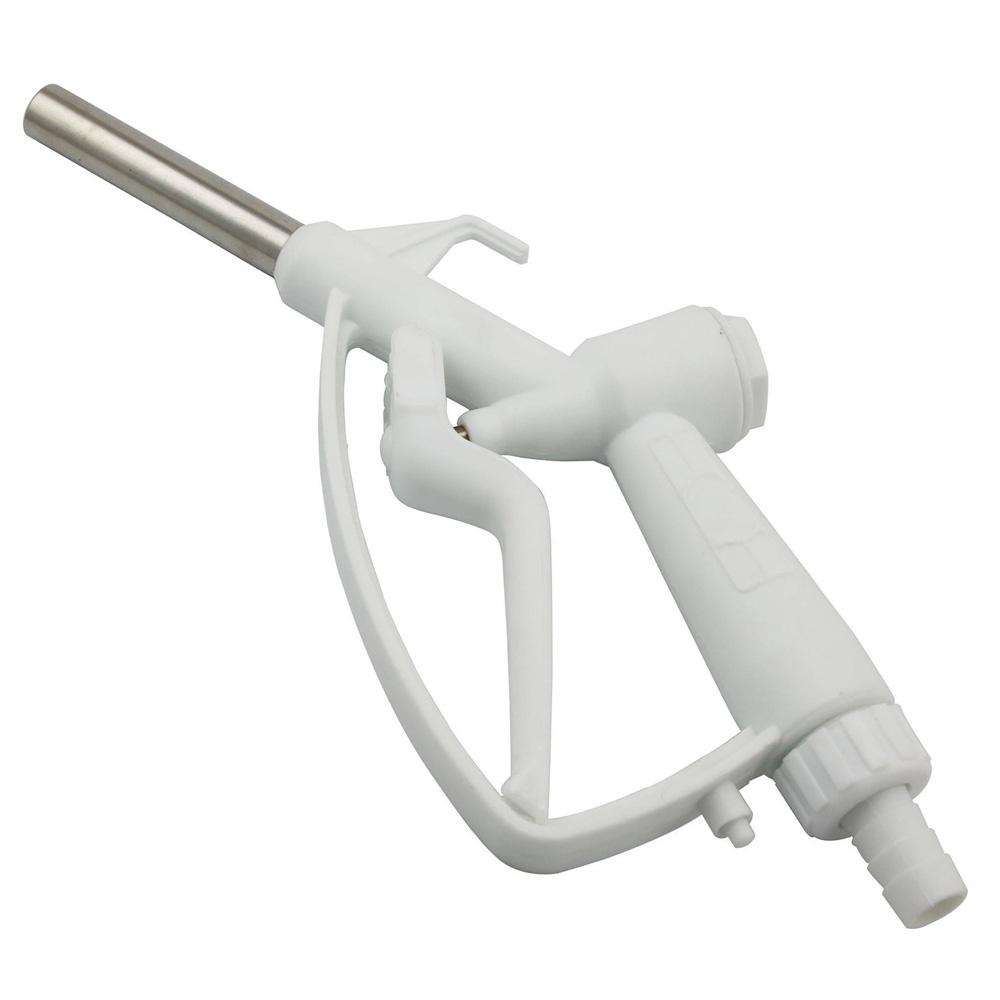

PP (polypropylene) Manual AdBlue/DEF Nozzle |
| Color |
White |
| Body Material |
Polypropylene (PP) |
| Spout Material |
Stainless steel |
| Nozzle Size |
19mm |
| Flow Rate |
0-80litre/minute |
| Applications:AdBlue/DEF solutions,water,alcohol,gasoline,diesel,kerosene, |
| lubricant, water based chemical acid and alkali solutions |
| Packing |
50PCS/CTN |
| G/N Weight |
16/15KGS |
| Carton Size |
67 x 47 x 35cm |
| |
 |
Stainless Steel Automatic Nozzle for Adblue/DEF Urea |
| Size |
45x15x1.9cm |
| Body Material |
Stainless Steel |
| Net Weight |
2.4kgs |
| Inlet |
BSPF/NPT3/4" |
| Outlet |
16mm |
| Flow Rate |
0-120L/Min |
| Applications:AdBlue/DEF solutions,water,alcohol,gasoline,diesel,kerosene, |
| lubricant, water based chemical acid and alkali solutions |
| Packing |
10PCS/CTN |
| G/N Weight |
23/24KGS |
| Carton Size |
42 x 34 x 40cm |
| |
 |
Metering Manual Fuel Nozzle |
| Connection |
BSP/NPT Thread |
| Inlet Dia |
BSPT/NPT1’’ |
| Outlet Dia |
|
| Flow Rate |
0-60L/Min |
| Accuracy |
±0.5% |
| Packing |
1UNIT/BOX,10UNITS/CTN |
| N.W/G.W |
18/19KGS |
| Carton Size |
42 x 34 x 40cm |
| Applications |
Gasoline,Diesel,Kerosene |
| |
 |
Metering Automatic Fuel Nozzle |
| Connection |
BSP/NPT Thread |
| Inlet Dia |
BSPT/NPT1’’ |
| Outlet Dia |
|
| Flow Rate |
0-60L/Min |
| Accuracy |
±0.5% |
| Packing |
1UNIT/BOX,10UNITS/CTN |
| N.W/G.W |
18/19KGS |
| Carton Size |
42 x 34 x 40cm |
| Applications |
Gasoline,Diesel,Kerosene |
| |
 |
Measuring Fuel Nozzle With Oval Digital Gear Meter |
| Material |
Aluminum Alloy |
| Connection |
BSP/NPT Thread |
| Inlet Dia |
BSPT/NPT1’’ |
| Size |
32x15x3cm |
| Flow Rate |
10-100L/Min |
| Accuracy |
±0.5% |
| Display |
LCD Digital |
| Packing |
1UNIT/BOX,10UNITS/CTN |
| N.W/G.W |
14/15KGS |
| Carton Size |
42 x 34 x 40cm |
| Applications |
Diesel,Kerosene |
| |
 |
Digital Flow Meter |
| Certificate |
CE |
| Material |
PPS |
| Connection Size |
BSPF1 |
| Accuracy |
±1% |
| Repeatability Error |
±0.5% |
| Max Pressure |
20Bar |
| Temperature Rang |
From -10℃ to +50℃ |
| Working Voltage |
2.3-3.3V |
| Standby Time |
2 years |
| Flow Range |
10L-100L/min |
| Single Count |
0.00-999.99 |
| Total Count |
0.00-99999.99 |
| Units |
L/GAL/PTS/QTS |
| Packing |
50UNIT/CTN |
| N.W/G.W |
15/16KGS |
| Carton Size |
42 x 23 x 30cm |
| Applications |
Gasoline,Diesel,Kerosene,Water,Adblue |
| |
 |
Electronic Turbine Flow Meter |
| Material |
Aluminum |
| Bearings Material |
Ceramics |
| Shaft |
Tungsten Carbide |
| Rotor |
PVDF |
| Connection Size |
BSPF/NPT1’’ |
| Pressure |
300PSI/21Bar |
| Repeatability |
±0.1% |
| Flow Rate |
10L-120L/min |
| Metric Accuracy |
±1.5% |
| Packing |
20UNIT/CTN |
| N.W/G.W |
7/8.5KGS |
| Carton Size |
49.5 x 38 x 19.5cm |
| Applications |
Diesel, Kerosene, Gasoline |
| |
| |
Electronic Turbine Flow Meter |
| Material |
Aluminum |
| Bearings Material |
Ceramics |
| Shaft |
Tungsten Carbide |
| Rotor |
PVDF |
| Connection Size |
BSPF/NPT1’ 1.5'' |
| Pressure |
300PSI/21Bar |
| Repeatability |
±0.1% |
| Flow Rate |
20L-200L/min |
| Metric Accuracy |
±1% |
| Packing |
10UNIT/CTN |
| N.W/G.W |
12/13.65KGS |
| Carton Size |
49.5 x 38 x 19.5cm |
| Applications |
Diesel, Kerosene, Gasoline |
| |
 |
Mechanical Flow Meter |
| Material |
Aluminum |
| Connection Size |
BSPF/NPT 1’ |
| Accuracy |
±1% |
| Accumulative Counting |
8 digits |
| Max Pressure |
3 Bar |
| Flow Range |
0-120L/min |
| Units |
Litre |
| Packing |
8UNIT/CTN |
| N.W/G.W |
14.5/15KGS |
| Carton Size |
47 x 40 x 33cm |
| Applications |
Gasoline,Diesel,Kerosene |
| |
 |
Mechanical Flow Meter |
| Material |
Aluminum |
| Connection Size |
BSPF/NPT1’ 1.5'' |
| Accuracy |
±1% |
| Accumulative Counting |
8 digits |
| Max Pressure |
3 Bar |
| Flow Range |
10-180L/min |
| Units |
Litre |
| Packing |
6UNIT/CTN |
| N.W/G.W |
14.5/15KGS |
| Carton Size |
62 x 29 x 38cm |
| Applications |
Gasoline,Diesel,Kerosene |
|
|
|
|
| Specifications︰ | Manueel Afgiftepistool met digitale teller |
|
|
