12/24V DC Electric Oil Diesel Fuel Transfer Pump / Diesel Fuel Dispenser - 175W

12/24V DC Electric Oil Diesel Fuel Transfer Pump Dispenser - 175W
  • 12/24V DC Electric Oil Diesel Fuel Transfer Pump Dispenser - 175W
  • 12V DC 38mm Diesel Fuel Water Oil Car Camping Submersible Transfer Drum Pump
  • 12V 51mm Mini Submersible Diesel Fuel Gas Water Oil Car Electric Transfer Pump
  • Submersible 12V 51mm Mini Diesel Fuel Water Oil Transfer Pump
  • 12V 51mm DC Diesel Fuel Water Oil Transfer Submersible Pump
  • 110V 230V Diesel Biodiesel Kerosene Transfer Fuel Pump Meter Automatic Fueling Nozzle
  • 110V 230V Automatic Transfer Diesel Kerosene Oil Fuel Pump Kit w Meter Fueling Nozzle
  • Transfer Refilling Petrol Gasoline Diesel Fuel Foot Pedal Pump Kit & Manual Nozzle w/ Hoses
Model No.︰12/24V DC 175W
Brand Name︰OEM
Country of Origin︰China
Unit Price︰US $ 17.16 / PC
Minimum Order︰50 PC
Share on:

 Total 21 Related Items
Prev45678Next

Product Description

12/24V DC Electric Oil Diesel Fuel Transfer Pump Dispenser - 175W


GT811-A Mini Oil Diesel Fuel Transfer Pump - 45L/Min 175W DC 12V/24V
Art No DC 12V/24V 175W 45L/Min
Certificate CE
Voltage DC 12V/24V
Power 175W
Inlet/Outlet Dia 25mm/25mm
Impeller Shaft No.45 Powder Metallurgy
Flow 45L/Min
Suction/Lift 5m/10m
Net Weight 3.7KGS
Packing 1SET/BOX,6SET/CTN
N.W/G.W 23/24KGS
Carton Size 59 x 52 x 21cm
Applications Diesel,Kerosene

GT811-B Mini Oil Diesel Fuel Transfer Pump - 175W 45L/Min 12V/24V
Art No DC 12V/24V 175W 45L/Min
Certificate CE
Voltage DC 12V/24V
Power 175W
Inlet/Outlet Dia 25mm/25mm
Impeller Shaft Cast Iron
Flow 45L/Min
Suction/Lift 3m/7m
Packing 1SET/BOX,6SET/CTN
N.W/G.W 23/24KGS
Carton Size 59 x 52 x 21cm
Applications Diesel,Kerosene

GT811-C Mini Oil Diesel Fuel Transfer Pump - 30L/Min 150W DC 12V/24V
Art No DC 12V/24V 150W 30L/Min
Certificate CE
Voltage DC 12V/24V
Power 150W
Inlet/Outlet Dia 25mm/25mm
Impeller Shaft No.45 Powder Metallurgy
Flow 30L/Min
Suction/Lift 2m/3m
Net Weight 3.7KGS
Packing 1SET/BOX,6SET/CTN
N.W/G.W 21/22KGS
Carton Size 59 x 52 x 21cm
Applications Diesel,Kerosene

GT811-D Mini 12V/24V Oil Diesel Fuel Transfer Pump - 120W 30L/Min
Art No DC 12V/24V 120W 30L/Min
Certificate CE
Voltage DC 12V/24V
Power 120W
Inlet/Outlet Dia 19mm/19mm
Impeller Shaft Rubber
Flow 30L/Min
Suction/Lift 2m/3m
Packing 1SET/BOX,8SET/CTN
N.W/G.W 19/20KGS
Carton Size 65 x 39.5 x 17.5cm
Applications Diesel,Kerosene

GT811-AC Oil Diesel Fuel Transfer Pump - 60L/Min 550W AC 220-240V
Art No AC 220V 550W 60L/Min
Certificate CE
Voltage AC 220-240V
Power 550W
Frequency 50HZ
Inlet/Outlet Dia 25mm/25mm
Impeller Shaft No.45 Powder Metallurgy
Speed 2800R/Min
Flow 60L/Min
Suction/Lift 5m/10m
Packing 1UNIT/BOX,2UNITS/CTN
Net Weight 8.5KGS
N.W/G.W 17/18KGS
Carton Size 45 x 32 x 23cm
Applications Diesel,Kerosene

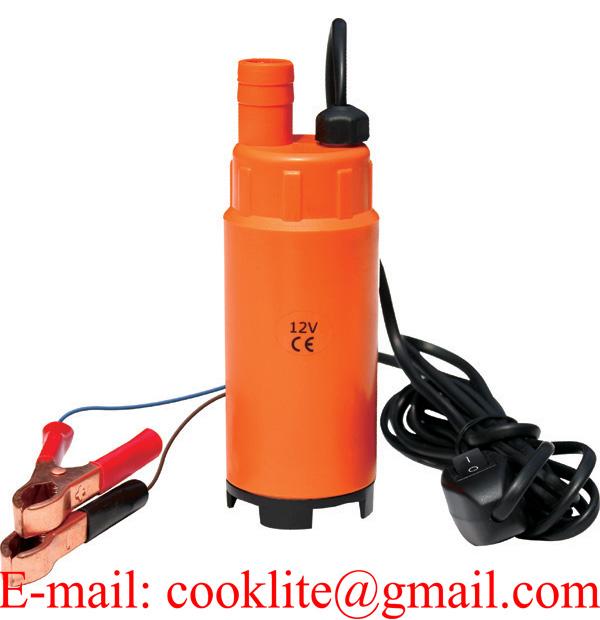

 2 GT-821.jpg Mini Submersible Oil Diesel Fuel Transfer Pump - 51MM - 12V/24V
Pump Body Material Stainless Steel/Aluminum/Plastic
Motor Case,Impeller Plastic - PP
Filter,Outlet Plastic - Nylon
Stator Material Magnetic Steel
Seal Material NBR
Switch 6A - 250AC
Voltage 12V/24V
Power 60W
Outlet Dia 19mm
Cable  3m
Overall Size 50.8 x 50.8 x 177mm
Flow 30L/Min
Lift 3m
Speed 8500 R/Min
Self-Priming Yes
Applications Diesel,Kerosene,Water

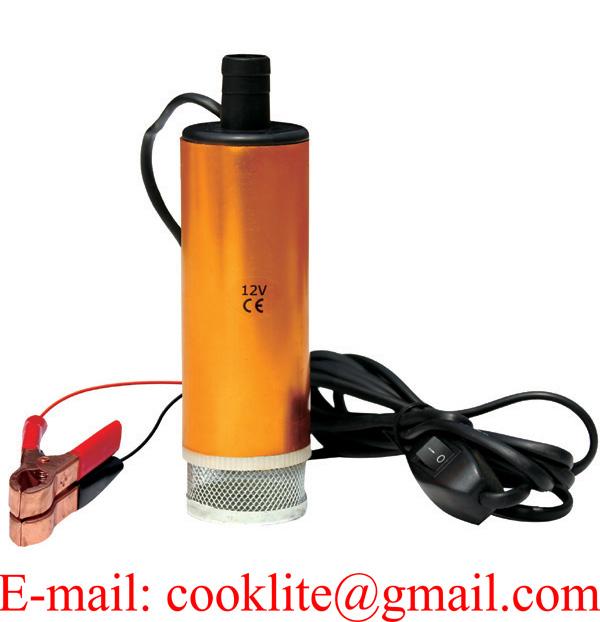

Mini Submersible Oil Diesel Fuel Transfer Pump - 38MM - 12V/24V
Pump Body Material Stainless Steel
Motor Case,Impeller Plastic - PP
Filter,Outlet Plastic - Nylon
Stator Material Magnetic Steel
Seal Material NBR
Switch 6A - 250AC
Voltage 12V/24V
Power 40W
Outlet Dia 19mm
Cable  3m
Overall Size 38 x 38 x 117mm
Flow 20L/Min
Lift 2m
Speed 8500 R/Min
Self-Priming Yes
Applications Diesel,Kerosene,Water

Electric Drum Pump Electric Oil Diesel Fuel Transfer Drum Pump - 60L/Min
Art No. GT812
Certificate CE
Voltage 12-24V/220V
Material Aluminum Alloy
Total Length 1.2m/1.2m
Motor Single-phase DC Morot
Power 420W
Inlet Dia 44mm
Outlet Dia 25mm
Output Flowing 60L/Min
Suction 5m
Lift 10m
Cable 1.5m
Application Diesel,Kerosene,Water
Packing 1PC/BOX,10PCS/CTN
N/G Weight 31/33KGS
Carton Size 109 x 31 x 41cm

 GT811-12V Kit.jpg Diesel Fuel Transfer Pump Kit Mini Dispenser - 175W DC 12V/24V
Art No DC Pump Kit with Manual Nozzle
Certificate CE
Included Pump + Hose + Fuel Nozzle
Voltage DC 12V/24V
Power 175W
Inlet/Outlet Dia BSPT/NPT 3/4'Inch
Impeller Shaft No.45 Powder Metallurgy
Flow 45L/Min
Suction/Lift 3m/7m
Packing 1SET/BOX,2SET/CTN
N.W/G.W 14/15KGS
Carton Size 75 x 37.5 x 19.5cm
Applications Diesel,Kerosene

 GT811-12V Kit-2.jpg Metering Diesel Fuel Transfer Pump Kit Portable Dispenser
Art No DC Pump Kit with Metering Nozzle
Certificate CE
Included Pump + Hose + Metering Nozzle
Voltage DC 12V/24V
Power 175W
Inlet/Outlet Dia BSPT/NPT 3/4'Inch
Impeller Shaft No.45 Powder Metallurgy
Flow 45L/Min
Suction/Lift 3m/7m
Packing 1SET/BOX,2SET/CTN
N.W/G.W 14/15KGS
Carton Size 75 x 37.5 x 19.5cm
Applications Diesel,Kerosene

 GT811-12V Kit-3.jpg Diesel Fuel Transfer Pump Kit Mini Dispenser - 175W DC 12V/24V
Art No DC Pump Kit with Automatic Nozzle
Certificate CE
Included Pump + Hose + Auto Fuel Nozzle
Voltage DC 12V/24V
Power 175W
Inlet/Outlet Dia BSPT/NPT 3/4'Inch
Impeller Shaft No.45 Powder Metallurgy
Flow 45L/Min
Suction/Lift 3m/7m
Packing 1SET/BOX,2SET/CTN
N.W/G.W 14/15KGS
Carton Size 75 x 37.5 x 19.5cm
Applications Diesel,Kerosene

 GT811-220V Kit.jpg Diesel Fuel Transfer Pump Kit Mini Dispenser - 550W AC 220-240V
Art No AC Pump Kit
Certificate CE
Included Pump + Hose + Flow Meter
Voltage AC 220-240V
Power 550W
Inlet/Outlet Dia 25mm/25mm
Impeller Shaft No.45 Powder Metallurgy
Flow 60L/Min
Suction/Lift 5m/10m
Packing 1UNIT/BOX,2UNITS/CTN
N.W/G.W 26/27KGS
Carton Size 76 x 38.5 x 22.5cm
Applications Diesel,Kerosene

 GT820-12V.jpg Mini Diesel Fuel Dispenser - 45L/Min 175W DC 12V/24V
Art No. GT820 - DC
Certificate CE
Voltage DC 12V/24V
Power 175W
Speed 4500R/Min
Flow 45L/Min
Suction/Lift 3m/7m
Packing 1SET/CTN
N.W/G.W 13/14KGS
Carton Size 42.5 x 33.5 x 32cm
Applications Diesel,Kerosene

 GT820-220V.jpg Mini Diesel Fuel Dispenser - 60L/Min 550W AC 220-240V
Art No GT820 - AC
Certificate CE
Voltage AC 220-240V
Power 550W
Frequency 50HZ
Inlet/Outlet Dia 25mm/25mm
Speed 2800R/Min
Flow 60L/Min
Suction/Lift 5m/10m
Packing 1SET/CTN
N.W/G.W 17/18KGS
Carton Size 42.5 x 33.5 x 32cm
Applications Diesel,Kerosene

GT-819 220V Engine Oil Transfer Gear Pump Motor 550W 20L/Min
Art No AC 220V 550W 20L/Min
Certificate CE
Voltage AC 220-240V
Power 550W
Self-Priming Yes
Inlet/Outlet Dia 25mm/25mm
Cable Length 1.3M
Speed 1400R/Min
Flow 20L/Min
Suction/Lift 10m/20m
Packing 1UNIT/BOX,2UNITS/CTN
Net Weight 8.5KGS
N.W/G.W 17/18KGS
Carton Size 45 x 32 x 23cm
Applications #32,46,68 engine oil or Hydraulic oil

825DC Electric 12V/24V AdBlue Liquid Transfer Membrane Pump
Certificate CE
Power 330W
Speed 3000R/Min
Flow 40L/Min
Pump Type Diaphragm
Housing Polyproplyene
Diaphragm TPU
Check Valve Viton
Check Valve Spring 316 Stainless Steel
Motor Shaft 316 Stainless Steel
Inlet/Outlet Dia 25mm
Maximum Working Pressure 40PSI ( 3 Bar )
Switch Setting Yes
Self Priming Up to 5M vertically
Liquid Temperature No more than 60°C
Applications AdBlue;Urea;Water

  Electric AC Adblue Transfer Diaphragm Pump 220V 40L/Min
Certificate CE
Power 330W
Speed 2850R/Min
Flow 40L/Min
Pump Type Diaphragm
Housing Polyproplyene
Diaphragm TPU
Check Valve Viton
Check Valve Spring 316 Stainless Steel
Motor Shaft 316 Stainless Steel
Inlet/Outlet Dia 25mm
Maximum Working Pressure 40PSI ( 3 Bar )
Switch Setting Yes
Self Priming Up to 5M vertically
Liquid Temperature No more than 60°C
Applications Adblue;Urea;Water
