12V/24V DC Diesel Transfer Pump
|
|
| Model No.︰ | 12/24V 175W |
| Brand Name︰ | OEM |
| Country of Origin︰ | China |
| Unit Price︰ | US $ 18.5 / PC |
| Minimum Order︰ | 50 PC |
|
|
|
|
|
|
|
|
12V/24V DC Diesel Transfer Pump
 |
Submersible Diesel Fuel Transfer Pump - 51mm |
| Pump Body Material |
Stainless Steel; Aluminum; Plastic |
| Motor Case,Impeller |
Plastic - PP |
| Filter,Outlet |
Plastic - Nylon |
| Stator Material |
Magnetic Steel |
| Seal Material |
NBR |
| Switch |
6A - 250AC |
| Voltage |
12V/24V |
| Power |
60W |
| Outlet Dia |
19mm |
| Cable |
3m |
| Overall Size |
50.8 x 50.8 x 177mm |
| Flow |
30L/Min |
| Lift |
3m |
| Speed |
8500 R/Min |
| Applications |
Diesel,Kerosene,Water |
| |
| Submersible Diesel Fuel Transfer Pump - 38mm |
| Pump Body Material |
Stainless Steel; Aluminum; Plastic |
| Motor Case,Impeller |
Plastic - PP |
| Filter,Outlet |
Plastic - Nylon |
| Stator Material |
Magnetic Steel |
| Seal Material |
NBR |
| Switch |
6A - 250AC |
| Voltage |
12V/24V |
| Power |
40W |
| Outlet Dia |
19mm |
| Cable |
3m |
| Overall Size |
38 x 38 x 117mm |
| Flow |
20L/Min |
| Lift |
2m |
| Speed |
8500 R/Min |
| Applications |
Diesel,Kerosene,Water |
| |
 |
Fuel Oil Diesel Transfer Pump - 45L/Min 175W DC 12V/24V |
| Voltage |
DC 12V/24V |
| Power |
175W |
| Load Current |
10 Amps |
| Inlet/Outlet Dia |
25mm/25mm |
| Power Cable |
2m |
| Flow |
50L/Min |
| Suction/Lift |
5m/10m |
| Net Weight |
3.7KGS |
| Packing |
1SET/BOX,6SET/CTN |
| Applications |
Diesel,Kerosene |
| |
 |
Diesel Fuel Oil Transfer Pump - 175W 45L/Min 12V/24V |
| Voltage |
DC 12V/24V |
| Power |
175W |
| Load Current |
10 Amps |
| Inlet/Outlet Dia |
25mm/25mm |
| Power Cable |
2m |
| Flow |
50L/Min |
| Suction/Lift |
3m/7m |
| Packing |
1SET/BOX,6SET/CTN |
| Applications |
Diesel,Kerosene |
| |
 |
Diesel Fuel Transfer Pump - 70L/Min 550W DC 12V/24V |
| Voltage |
DC 12V/24V |
| Power |
550W |
| Inlet/Outlet Dia |
25mm/25mm |
| Power Cable |
2m |
| Flow Rate |
70L/Min |
| Suction |
5m |
| Lift |
10m |
| Packing |
1SET/BOX,6SET/CTN |
| Applications |
Diesel,Kerosene |
| |
 |
Diesel Fuel Transfer Pump - 60L/Min 550W AC 220-240V |
| Voltage |
AC 220-240V |
| Power |
550W |
| Frequency |
50HZ |
| Load Current |
2.5 Amps |
| Inlet/Outlet Dia |
25mm/25mm |
| Power Cable |
2m |
| Speed |
2800R/Min |
| Flow |
60L/Min |
| Suction/Lift |
5m/10m |
| Packing |
1UNIT/BOX,2UNITS/CTN |
| Applications |
Diesel,Kerosene |
| |
 |
Diesel Fuel Transfer Pump - 80L/Min 750W AC 220-240V |
| Voltage |
AC 220-240V |
| Power |
750W |
| Frequency |
50HZ |
| Inlet/Outlet Dia |
25mm/25mm |
| Power Cable |
2m |
| Flow |
80L/Min |
| Suction |
5m |
| Lift |
10m |
| Packing |
1UNITS/CTN |
| Applications |
Diesel,Kerosene |
| |
 |
12V Diesel Heating Motor Oil Extractor Pump |
| Maximum Current |
5A |
| Maximum Power |
60W |
| Sound Pressure Level |
70dB(A) |
| Power Supply |
12V- vehicle battery |
| Diesel/Heating Oil Flow Rate |
250L/H |
| Motor oil (40-60 degrees) Flow Rate |
1L/Min |
| Oil Extractor Pump Size |
13 x 8 x 8.5cm ( L x W x H ) |
| Input Hose |
1.2m/6mm/4mm (Length/Outer Dia/Inner Dia) |
| Outlet Hose |
1.5m/12mm/10mm (Length/Outer Dia/Inner Dia) |
| Packing |
10PCS/CTN |
| |
 |
12V/24V 100W Engine Oil Transfer Pump |
| Theory |
Gear Pump |
| Voltage |
DC 12V/24V |
| Power |
100W |
| No-Load Current |
2.5A |
| Load Current |
5A |
| Worke Cycle |
30 Min |
| Flow |
1-4L/Min |
| Inlet Tube |
6mm x 800mm Copper Tube |
| |
8mmx1000mm PU Tube |
| Outlet Tube |
10mmx1000mm PU Tube |
| Packing |
12PCS/CTN |
| |
 |
220V Engine Oil Transfer Gear Pump Motor 550W 20L/Min |
| Voltage |
AC 220-240V |
| Power |
550W |
| Inlet/Outlet Dia |
25mm/25mm |
| Cable Length |
1.3M |
| Speed |
1400R/Min |
| Flow |
20L/Min |
| Suction/Lift |
10m/20m |
| Packing |
1UNIT/BOX,2UNITS/CTN |
| Net Weight |
8.5KGS |
| Applications |
#32,46,68 engine oil or Hydraulic oil |
| |
 |
Electric 12V/24V AdBlue Liquid Transfer Membrane Pump |
| Power |
330W |
| Speed |
3000R/Min |
| Flow |
40L/Min |
| Pump Type |
Diaphragm |
| Housing |
Polyproplyene |
| Diaphragm |
TPU |
| Check Valve |
Viton |
| Check Valve Spring |
316 Stainless Steel |
| Motor Shaft |
316 Stainless Steel |
| Inlet/Outlet Dia |
25mm |
| Maximum Working Pressure |
40PSI ( 3 Bar ) |
| Switch Setting |
Yes |
| Self Priming |
Up to 5M vertically |
| Liquid Temperature |
No more than 60°C |
| Applications |
AdBlue;Urea;Water |
| |
 |
Electric AC Adblue Transfer Diaphragm Pump 220V 40L/Min |
| Power |
330W |
| Speed |
2850R/Min |
| Flow |
40L/Min |
| Pump Type |
Diaphragm |
| Housing |
Polyproplyene |
| Diaphragm |
TPU |
| Check Valve |
Viton |
| Check Valve Spring |
316 Stainless Steel |
| Motor Shaft |
316 Stainless Steel |
| Inlet/Outlet Dia |
25mm |
| Maximum Working Pressure |
40PSI ( 3 Bar ) |
| Switch Setting |
Yes |
| Self Priming |
Up to 5M vertically |
| Liquid Temperature |
No more than 60°C |
| Applications |
Adblue;Urea;Water |
| |
 |
Electric Diesel Fuel Oil Transfer Drum Pump - 60L/Min |
| Voltage |
AC 110V 220V |
| Material |
Aluminum Alloy |
| Total Length |
1.2m |
| Load Current |
11.5Amps |
| Power |
430W |
| Inlet Dia |
44mm |
| Outlet Dia |
25mm |
| Output Flowing |
60L/Min |
| Suction |
5m |
| Lift |
10m |
| Cable |
2m |
| Application |
Diesel,Kerosene,Water |
| Packing |
1PC/BOX,10PCS/CTN |
| |
 |
Electric Diesel Fuel Oil Transfer Drum Pump - 60L/Min |
| Voltage |
DC 12V 24V |
| Material |
Aluminum Alloy |
| Total Length |
1.2m |
| Load Current |
11.5Amps |
| Power |
430W |
| Inlet Dia |
44mm |
| Outlet Dia |
25mm |
| Output Flowing |
60L/Min |
| Suction |
5m |
| Lift |
10m |
| Cable |
2m |
| Application |
Diesel,Kerosene,Water |
| Packing |
1PC/BOX,10PCS/CTN |
| |
 |
304 Stainless Steel Electric Chemical Barrel Pump |
| Voltage |
220V |
| Power |
0.88KW |
| Material |
304 Stainless Steel |
| Suction Tube |
304 Stainless Steel |
| Seal Material |
Viton |
| Vane Material |
304 Stainless Steel |
| Spout Material |
304 Stainless Steel |
| Inlet/Out Dia |
50mm/25mm |
| Tube Length |
1000mm |
| Output Flowing |
110L/Min |
| Suction/Lift |
5m/7.5mm |
| Speed |
10000R/Min |
| Fits on |
15 - 55 Gallon Drums |
| Applications |
Acid,alkali,diesel,machine oil,water, toluene,Uric acid |
|
| Packing |
2PCS/CTN |
| |
 |
316 Stainless Steel Electric Chemical Barrel Pump |
| Voltage |
220V |
| Power |
0.8KW |
| Material |
316 Stainless Steel |
| Suction Tube |
316 Stainless Steel |
| Seal Material |
Viton |
| Impeller Material |
304 Stainless Steel |
| Spout Material |
304 Stainless Steel |
| Inlet/Out Dia |
42mm/25mm |
| Tube Length |
1000mm |
| Output Flowing |
150L/Min |
| Suction/Lift |
5m/10mm |
| Motor |
Changable Speed |
| Max Viscosity |
1200CPS |
| Fits on |
15 - 55 Gallon Drums |
| Applications |
Acid,alkali,diesel,gasoline,machine oil,water,alcohol,toluene,Uric acid |
|
| Packing |
2PCS/CTN |
| |
 |
15L Electric Grease Pump |
| Capacity |
15L |
| Material |
Steel |
| Overall Size |
36 x 32 x 80cm |
| Voltage |
220V/380V |
| Power |
250W |
| Output flowing |
0.25L/Min |
| Pressure |
≤25-40mpa |
| High Pressure Hose |
4M |
| Applicable |
NLG I0# - 3# Lubrications |
| Packing |
1UNIT/CTN |
| |
| 25L Electric Grease Pump |
| Capacity |
25L |
| Material |
Steel |
| Overall Size |
39 x 38 x 86cm |
| Voltage |
220V/380V |
| Power |
1.1KW |
| Output flowing |
0.35L/Min |
| Pressure |
≤25-40mpa |
| High Pressure Hose |
4M |
| Applicable |
NLG I# - 3# Lubrications |
| Packing |
1UNIT/CTN |
| |
 |
Diesel Fuel Transfer Pump Kit Mini Dispenser - 175W DC 12V/24V |
| Certificate |
CE |
| Included |
Pump + Hoses + Manual Fuel Nozzle |
| Voltage |
DC 12V/24V |
| Power |
175W |
| Inlet/Outlet Dia |
25mm |
| Impeller |
Cast Iron |
| Flow |
45L/Min |
| Suction/Lift |
3m/7m |
| Suction Hose |
2m |
| Delivery Hose |
4m |
| Packing |
1SET/BOX,2SET/CTN |
| Applications |
Diesel,Kerosene |
| |
 |
Metering Diesel Fuel Transfer Pump Kit Portable Dispenser |
| Certificate |
CE |
| Included |
Pump + Hoses + Metering Manual Nozzle |
| Voltage |
DC 12V/24V |
| Power |
175W |
| Inlet/Outlet Dia |
25mm |
| Impeller Shaft |
Cast Iron |
| Flow |
45L/Min |
| Suction/Lift |
3m/7m |
| Suction Hose |
2m |
| Delivery Hose |
4m |
| Packing |
1SET/BOX,2SET/CTN |
| Applications |
Diesel,Kerosene |
| |
 |
Diesel Fuel Transfer Pump Kit Mini Dispenser - 175W DC 12V/24V |
| Certificate |
CE |
| Included |
Pump + Hoses + Auto Fuel Nozzle |
| Voltage |
DC 12V/24V |
| Power |
175W |
| Inlet/Outlet Dia |
25mm |
| Impeller |
Cast Iron |
| Flow |
45L/Min |
| Suction/Lift |
3m/7m |
| Suction Hose |
2m |
| Delivery Hose |
4m |
| Packing |
1SET/BOX,2SET/CTN |
| Applications |
Diesel,Kerosene |
| |
 |
Diesel Fuel Transfer Pump Kit Mini Dispenser - 175W DC 12V/24V |
| Certificate |
CE |
| Included |
Pump + Hoses + Metering Auto Fuel Nozzle |
| Voltage |
DC 12V/24V |
| Power |
175W |
| Inlet/Outlet Dia |
25mm |
| Impeller |
Cast Iron |
| Flow |
0-50L/Min |
| Suction/Lift |
3m/7m |
| Suction Hose |
2m |
| Delivery Hose |
4m |
| Packing |
1SET/BOX,2SET/CTN |
| Applications |
Diesel,Kerosene |
| |
 |
Diesel Fuel Transfer Pump Kit Mini Dispenser - 550W AC 220-240V |
| Art No |
AC Pump Kit |
| Certificate |
CE |
| Included |
Pump + Hoses + Manual Fuel Nozzle |
| Voltage |
AC 220-240V |
| Power |
550W |
| Inlet/Outlet Dia |
25mm/25mm |
| Motor Coil Material |
100%Full copper |
| Flow |
60L/Min |
| Suction/Lift |
5m/10m |
| Suction Hose |
2m |
| Delivery Hose |
4m |
| Packing |
1UNIT/BOX,2UNITS/CTN |
| Applications |
Diesel,Kerosene |
| |
 |
Diesel Fuel Transfer Pump Kit Mini Dispenser - 550W AC 220-240V |
| Art No |
AC Pump Kit |
| Certificate |
CE |
| Included |
Pump + Hoses + Auto Fuel Nozzle |
| Voltage |
AC 220-240V |
| Power |
550W |
| Inlet/Outlet Dia |
25mm/25mm |
| Motor Coil Material |
100%Full copper |
| Flow |
60L/Min |
| Suction/Lift |
5m/10m |
| Suction Hose |
2m |
| Delivery Hose |
4m |
| Packing |
1UNIT/BOX,2UNITS/CTN |
| Applications |
Diesel,Kerosene |
| |
 |
Diesel Fuel Transfer Pump Kit Mini Dispenser - 550W AC 220-240V |
| Art No |
AC Pump Kit |
| Certificate |
CE |
| Included |
Pump + Hoses + Metering Auto Fuel Nozzle |
| Voltage |
AC 220-240V |
| Power |
550W |
| Inlet/Outlet Dia |
25mm/25mm |
| Motor Coil Material |
100%Full copper |
| Flow |
60L/Min |
| Suction/Lift |
5m/10m |
| Suction Hose |
2m |
| Delivery Hose |
4m |
| Packing |
1UNIT/BOX,2UNITS/CTN |
| Applications |
Diesel,Kerosene |
| |
 |
Mini Diesel Fuel Dispenser - 45L/Min 175W DC 12V/24V |
| Certificate |
CE |
| Voltage |
DC 12V/24V |
| Power |
175W |
| Speed |
4500R/Min |
| Flow |
50L/Min |
| Suction/Lift |
3m/7m |
| Suction Hose |
2m |
| Delivery Hose |
4m |
| Packing |
1SET/CTN |
| Applications |
Diesel,Kerosene |
| |
 |
Mini Diesel Fuel Dispenser - 45L/Min 175W DC 12V/24V |
| Certificate |
CE |
| Voltage |
DC 12V/24V |
| Power |
175W |
| Speed |
4500R/Min |
| Flow |
50L/Min |
| Suction/Lift |
3m/7m |
| Suction Hose |
2m |
| Delivery Hose |
4m |
| Packing |
1SET/CTN |
| Applications |
Diesel,Kerosene |
| |
 |
Mini Diesel Fuel Dispenser - 60L/Min 550W AC 220-240V |
| Certificate |
CE |
| Voltage |
AC 220-240V |
| Power |
550W |
| Frequency |
50HZ |
| Inlet/Outlet Dia |
25mm/25mm |
| Speed |
2800R/Min |
| Flow |
60L/Min |
| Suction/Lift |
5m/10m |
| Suction Hose |
2m |
| Delivery Hose |
4m |
| Packing |
1SET/CTN |
| Applications |
Diesel,Kerosene |
| |
 |
Mini Diesel Fuel Dispenser - 60L/Min 550W AC 220-240V |
| Certificate |
CE |
| Voltage |
AC 220-240V |
| Power |
550W |
| Frequency |
50HZ |
| Inlet/Outlet Dia |
25mm/25mm |
| Speed |
2800R/Min |
| Flow |
60L/Min |
| Suction/Lift |
5m/10m |
| Suction Hose |
2m |
| Delivery Hose |
4m |
| Packing |
1SET/CTN |
| Applications |
Diesel,Kerosene |
| |
 |
220V AC Wall Mount Diesel Exhaust Fluid DEF Pump Kit |
| Certificate |
CE |
| Power |
330W |
| Speed |
3000R/Min |
| Flow |
40L/Min |
| Pump Type |
Diaphragm |
| Housing |
Polyproplyene |
| Diaphragm |
TPU |
| Check Valve |
Viton |
| Check Valve Spring |
316 Stainless Steel |
| Motor Shaft |
316 Stainless Steel |
| Inlet/Outlet Dia |
25mm |
| Max Working Pressure |
40PSI ( 3 Bar ) |
| Switch Setting |
Yes |
| Self Priming |
Up to 5M vertically |
| Liquid Temperature |
No more than 60°C |
| Applications |
Adblue;Urea;Water |
| |
|
|
 |
Mechanical Flow Meter |
| Material |
Aluminum |
| Connection Size |
BSPF/NPT 1’ |
| Accuracy |
±1% |
| Accumulative Counting |
8 digits |
| Max Pressure |
3 Bar |
| Flow Range |
0-120L/min |
| Units |
Litre |
| Packing |
8UNIT/CTN |
| N.W/G.W |
14.5/15KGS |
| Carton Size |
47 x 40 x 33cm |
| Applications |
Gasoline,Diesel,Kerosene |
| |
 |
Aluminum Manual Diesel Fuel Nozzle |
| Material |
Aluminum |
| Connection |
BSP/NPT Thread |
| Inlet Dia |
BSPT/NPT 3/4" or 1" |
| Outlet Dia |
15/16' |
| Flow Rate |
0-60L/Min |
| Nominal Pressure |
0.20MPa |
| Net Weight |
0.68KGS |
| Packing |
1UNIT/BOX,10UNITS/CTN |
| N.W/G.W |
11/12KGS |
| Carton Size |
42 x 34 x 40cm |
| Applications |
Gasoline,Diesel,Kerosene |
|
|
|
|
| Specifications︰ | 12V/24V DC Diesel Transfer Pump |
|
|
Product Image
|
|
12V/24V Diesel/Fluid Transfer Pump Portable - 175W 45L/Min
Mini Water Oil Diesel Fuel Transfer Pump 38mm 12V DC Submersible Pump Car Truck
12V Aluminum Submersible Mini Pump 51mm 30L/min Water Oil Fuel Diesel Fuel Pump
DC12V Stainless Steel Submersible Diesel Fuel Water Oil Pump 30L/min 51mm
DC 12V 24V 51mm Electric Fuel Transfer Pump 30L/Min Oil Pump Submersible Water Diesel Pump
Electric Diesel Oil Transfer Pump 110V 230V Fuel Manual Nozzle Hose w/ Meter
Transfer Refilling Petrol Gasoline Diesel Fuel Foot Pedal Pump Kit & Manual Nozzle w/ 6' Hose
12V Oil Fuel Diesel Extractor Scavenge Suction Transfer Pump 12 Volt DC Motor
Fuel Dispenser Filter R18189-30 Gasoline Diesel Transfer Pump Fuel Water Separator Filter
150L/Min AC Electric Barrel Pump 316 Stainless Steel Chemical Drum Pump
12V/24V 100W Engine Oil Transfer Pump
55 Gallon Drum Mounted Fuel Dispenser DC 12V/24V Electric Diesel Fuel Oil Transfer Barrel Pump
220V Electric Drum Barrel Oil Diesel Fuel Water Transfer Pump - 60L/Min

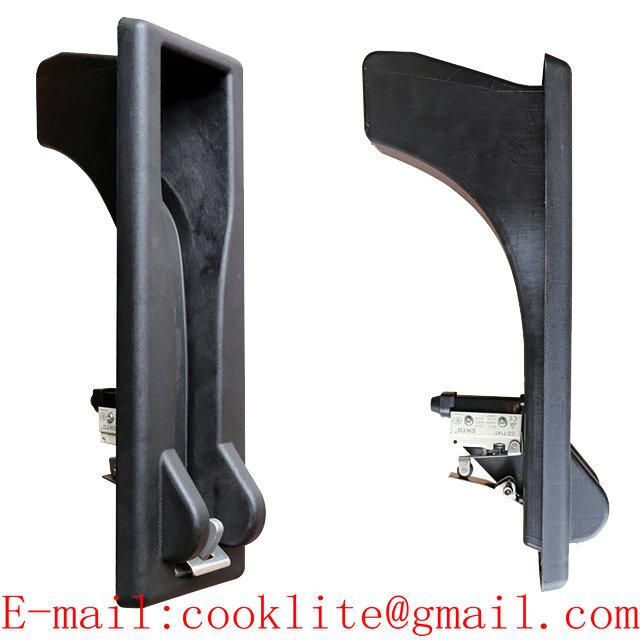

Fuel Dispenser Nozzle Holder Universal Fuel Gun Boot with Switch
Fluid Oil Diesel Extractor Sump Extractor Scavenge Pump 12V 60W Suction Exchange Transfer Pump for Auto Car Boat Motorbike Truck
Electric AC Adblue Transfer Diaphragm Pump 220V 40LPM Suzzara Blue DEF Drum Dispenser Pump for IBC Tote Tanks
Petrol Fuel Dispenser DC 12V 20GPM Explosion-proof Diesel Gasoline Transfer Pump Kit Electric Kerosene Oil Extractor Pump
750W AC 220V Electric Diesel Biodiesel Kerosene Pumpcast 80L/Min Fuel Oil Dispensing Transfer Extractor Pump Motor
AC 220V Metering Diesel Fuel Transfer Pump Kit with Manual Fuel Nozzle and Mechanical Flow Meter 550W 60L/Min Mini Gas Station
High Viscosity Electric Chemical Drum Barrel Pump
|
|
|
|
|
|
Related Products
|
|
